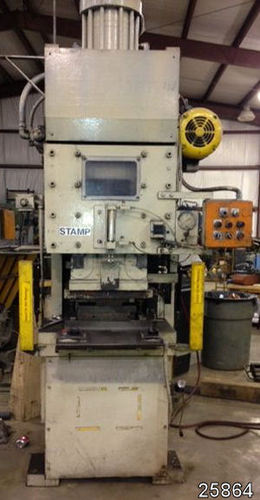

100 TON STANDARD HYDRAULIC C FRAME PRESS
With 8 post guided slide
Mfd. 1995
Model DC100-1834
Bed area: 34" L-R x 18" F-B
Bolster: 34" L-R x 18" F-B x 3" thick
8 post guided slide: 19" L-R x 16" F-B
Stroke: 0 - 10" maximum
Daylight opening (total): 16" maximum
Daylight opening (over bolster): 13" maximum
Throat depth: 10"
Ram diameter: 10"/6" @ 2550 PSI - 100 tons
Floor to top of bed: 36"
Power unit: Vickers hydraulic pump, driven by
20 HP 1760 RPM 230/460/3/60 motor
Speeds approx.: 120"/minute closing
34"/minute pressing to 100 tons
190"/minute return
Controls: Pushbutton operation with stroke &
pressure control
Dual touch palm
*Light curtain
Pressure gauge
Weight approx. 17,000#
Overall dimensions approx. 55" L-R x 88" F-B x 122" H
Serial no. 995472
Stock no. 25864
FOB ELK GROVE VILLAGE, IL
