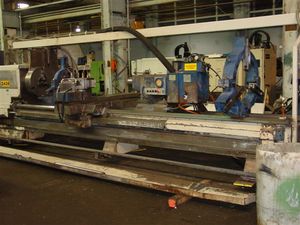

LODGE & SHIPLEY FLAT BED CNC LATHE

MODEL: PROFITURN 40, S/N: 49934

SPECIFICATIONS:

TURNING CAPACITY:

SWING OVER BED WAYS ........................... 33"

SWING OVER CROSS SLIDE ........................ 21-1/2"

DISTANCE BETWEEN CENTERS ...................... 168"

CROSS SLIDE TRAVEL ............................ 24-15/16"

SPINDLE HORSEPOWER ............................ 50 HP

NC CONTROLLED SPEEDS

IN THREE MECHANICAL RANGES..................... 6-850 RPM

EVERY RPM FROM ................................ 7-1100 RPM

SPINDLE NOSE .................................. 15" A-1

HOLE THROUGH SPINDLE .......................... 7"

SPINDLE COLLECT ............................... #6

BED WIDTH/DEPTH/............................... 25-1/4"

DISTANCE FROM FRONT WAY TO CENTERLINE OF WORK . 14-7/8"

FEED DRIVES RANGE OF FEEDS .................... 0-300

TRAVERSE RATE ................................. 300

TYPE .......................................... HIGH PERFORMANCE

TAILSTOCK SPINDLE QUILL........................ 6"

MAXIMUM STROKE (HYD-ACTUATED) ................. 11"

TURRET

SIX-STATION HORIZONTAL NUMBER OF POSITIONS .... 12

TURRET SIZE ACROSS FLATS ...................... 17-1/4"

TOOL HOLDERS .................................. STD FLANGED

TOOL SIZE ..................................... 1-1/2"X1-1/2"X6"

CURVIC COUPLING DIAMETER ...................... 14-3/4"

INDEX TIME (ONE STATION-60 DEGREE) ............ 3.5 SEC

FIVE STATIONS ................................. 11.5 SEC

EQUIPPED WITH:

* FANUC MODEL: 18T CONTROL

* FANUC RED CAP AC SERVO AXES MOTORS

* 25" 3-JAW MANUAL CHUCK

* 25" ROLLER TYPE STEADY REST

* SECOND STEADY REST

* CHIP CONVEYOR

* HYDRAULIC POWER TAILSTOCK

* 50 HORSEPOWER SPINDLE MOTOR

video: http://youtu.be/oGGLpjQGUyU

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call Mike at 973-497-7540
