INTERNATIONAL BRIQUETTERS 15000Briquetters الهيدروليكية

بطاقة الهوية
280732
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1994
الموقع
الولايات المتحدة الامريكية
رقم المخزن
8981

الوصف

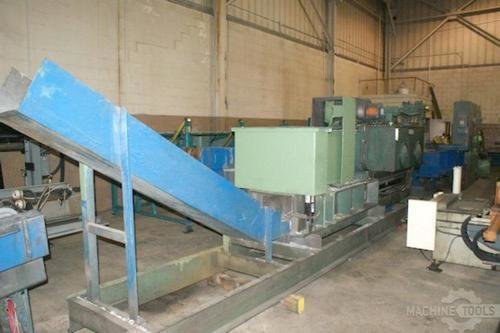

USED INTERNATIONAL BALER CORPORATION BRIQUETTER , Model 15000, 36” x 12”, Stock No. 8981

المواصفات

Brand: International Baler
Model: 15000

Specifications
Hopper size: 36”(L) x 12”(W)
Hopper: Steel plate fabrication with access door
Voltage: 440 volt, 3 Phase
Motor: 40 HP/TEFC
Dimensions: 70”(H) x 50”(W) x 196”(L)
Weight: 12,000 Lbs.
Bale size: Variable Length x 14 x 10 1/2
Bale volume: 1.2 Cubic feet expanded (approx.)

Equipped with:
-Solid state programmable controller
-Heavy-Duty oil tight design
-Electrical diagnostic control system
-Reservoir clean-out ports
-Amber safety light
-Machine shuts down when not in use
-Hydraulic rated to 3,000 PSI

Additional Specifications:
Cycle time: 9 Seconds (no load)
Production capacity: 1,584 Cubic feet per hour
Main frame: Welded of heavily reinforced plate
Floor of baler: AR 400 liner plates
Bottom of platen: AR 400 liner plates
Cooler fan motor: 1 HP
Main cylinder: 8” Bore, 66” stroke, 5.5” rod
Hydraulic door: 3” bore, 12” stroke, 1.25” rod
System pressure: 3,000 PSI
Total force: 150,800 lbs.
Platen pressure: 1025 PSI
Reservoir oil capacity: 210 Gallons
Tons per hour: Up to ¾ tons
Bale weights: Up to 59 lbs.
