GALLMEYER & LIVINGSTON 556المطاحن سطح الترددية

بطاقة الهوية
288062
علامة تجارية
موديل
السنة
1977
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
151606

الوصف

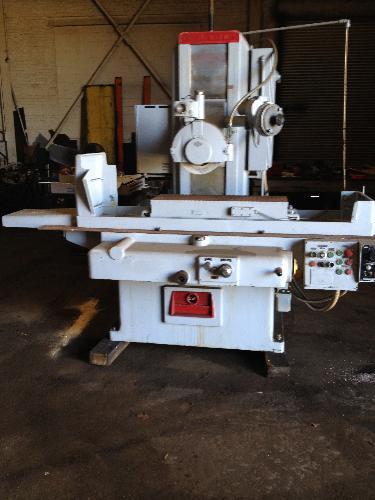

12" Width 36" Length Gallmeyer & Livingston 556, 6" EXT. VERTICAL SURFACE GRINDER, AUTO IDF, 3X AUTO FEEDS, O.S. WALKER EMC, HI-COLUM

المواصفات

تحويل المواصفات للمتري
الجدول-W
12 "
الجدول-L
36 "
القدرة
7.5 hp

12" X 36" GALLMEYER & LIVINGSTON "GRAND RAPIDS" (MADE IN USA) PRECISION HYDRAULIC SURFACE GRINDER WITH AUTOMATIC INCREMENTAL DOWNFEED  ** 6” EXTRA HEIGHT - 24" UNDER A FULL WHEEL ** MODEL: 556      S/N: 556245      NEW: 1977    CAPACITY:NOMINAL CAPACITY ....................... 12" x 36"MAXIMUM WIDTH GROUND ................... 15"MAXIMUM GRINDING LENGTH ................ 36"WORK HEIGHT – FULL WHEEL ............... 24" SPINDLE:WHEEL SIZE ............................. 14" X 1.5" X 5" GRINDING WHEEL SPEEDS (2) .............. 1750 RPMSPINDLE MOTOR .......................... 7.5 H.P. TABLE:HYDRAULIC TABLE TRAVEL, LONGITUDINAL ... 41-1/2"HYDRAULIC TABLE TRAVEL, CROSS .......... 13-3/4" LONGITUDINAL TABLE SPEEDS .............. 3" - 150" IPM AUTO CROSS FEED TO TABLE PER STROKE .... 0.01" TO 1/2" CONTINUOUS CROSS SPEED ................. 120" IPM  AUTO INCREMENTAL DOWNFEED INCREMENTS ... 0.001" TO .0001"MAX. TOTAL DOWNFEED FEED AMOUNT ........ 0.050"VERTICAL MOVEMENT OF WHEELHEAD ......... 25"    APPROXIMATE DIMENSIONS ............. 110"W X 74"D X 104"HAPPROXIMATE WEIGHT ..................... 9,300 LBS    EQUIPPED WITH:6” EXTRA VERTICAL CAPACITY, 24” HEIGHT UNDER A FULL WHEELAUTOMATIC INCREMENTAL DOWNFEED FOR BOTH  SURFACE& PLUNGEPOWER RAPID WHEELHEAD POSITIONINGHYDRAULIC LONGITUDINAL AND CROSS FEEDS POWER RAPID CROSS POSITIONINGSADDLE LOCK"OVER-THE-WHEEL" WHEEL DRESSER12" X 36" "O.S. WALKER" ELECTRO-MAGNETIC CHUCKVARIABLE HOLD NEUTROFIER CONTROL (750 WATT)COOLANT SYSTEM W/TANK/PUMP/SPLASH GUARDS OVER-THE-WHEEL DRESSER AUTO LUBRICATION SYSTEMSELF-CONTAINED HYDRAULIC SYSTEM MOTOR 7.5 HP 3/60/220-440 VOLT SPINDLE DRIVEMACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS    ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **** SUPERB CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
