BOYAR SCHULTZ 3Aالمطاحن سطح الترددية

بطاقة الهوية
288065
علامة تجارية
موديل
السنة
1982
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
151557

الوصف

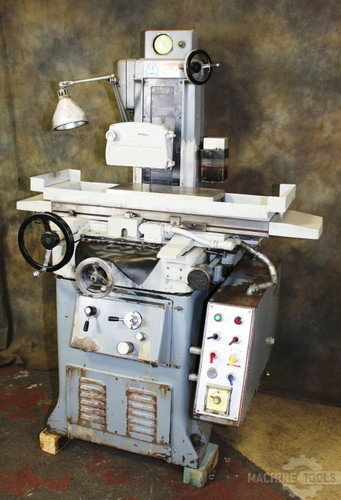

8" Width 18" Length Boyar-Schultz 3A HUSK-E-LINE SURFACE GRINDER, AUTO IDF, 3X AUTO FEEDS, POWER RAPID,

المواصفات

تحويل المواصفات للمتري
الجدول-W
6 "
الجدول-L
18 "
القدرة
2 hp

8" X 18" BOYAR SCHULTZ "HUSK-E-LINE" SURFACE GRINDER              W/AUTOMATIC INCREMENTAL DOWNFEED                                                                       MODEL: 3A818 "HUSK-E-LINE"   S/N: 818-20361-3A     NEW: 1982                                                           WIDTH& LENGTH GROUND .....................8" X 18"      MAX. HEIGHT UNDER 7" WHEEL TO TABLE ........... 13"     LONGITUDINAL TABLE TRAVEL ..................... 21"     LONGITUDINAL TABLE SPEED .............. 0 TO 70 FPM     CROSS FEED TRAVEL .......................... 9-1/4"     AUTOMATIC CROSS FEED INCREMENT .......... 0 TO 3/8"     WHEEL DRESS ....................... MANUAL OR 0-80"     CROSS FEED HANDWHEEL ....................... 0.001"     AUTO INCREMENTAL DOWNFEED (5 STEPS) .. 0.0001" - .002"  TOTAL AUTO DOWNFEED RANGE .................. 0.001"     VERTICAL HANDWHEEL ........................ 0.0001"     GRINDING WHEEL DIAMETER ....................... 8"     APPROX. MACHINE WEIGHT ................. 2,450 Lbs.                                                             EQUIPPED WITH:                                          AUTOMATIC INCREMENTAL DOWNFEED (SURFACE & PLUNGE CYCLES)NUMBER OF SPARKOUT PASSES IS PRE-SELECTABLE             POWER RAPID WHEELHEAD POSITIONING                       HYDRAULIC LONGITUDINAL & CROSS FEEDS                    1 H.P. BOYAR SCHULTZ SUPER-PRECISION DIRECT DRIVE          SPINDLE, 3450 RPM                                              HARD STEEL WAYS                                         CROSS FEED LOCK                                         AUTOMATIC LUBRICATOR TO ENSURE THAT WAYS, SCREWS,        AND ALL WEAR PARTS ARE PROPERLY OILED.                 SELF-CONTAINED HYDRAULICS SYSTEM    8" x 18" O.S. WALKER FINE-DIVISION PERMANENT MAGNETIC CHUCK, SERVICED BY "MAGNETOOL"                    3/60/230-460 VOLT ELECTRICS      MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS                                                                               * INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
