BROWN & SHARPE 814U VALUMASTERالمطاحن الأسطوانية العالمي

بطاقة الهوية
291240
علامة تجارية
موديل
السنة
1980
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
151809

الوصف

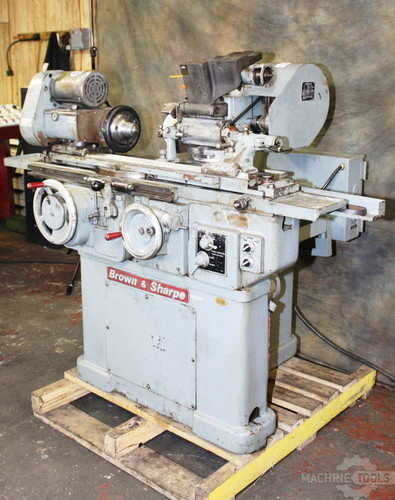

8" Swing 14" Centers Brown & Sharpe 814U Valuemaster OD GRINDER, POWER TABLE TRAVERSE, 5C COLLET CHUCK

المواصفات

تحويل المواصفات للمتري
الأرجحة
8 "
المراكز
14 "
القدرة
1 hp
موتور رأس الشغلة
0.2 hp
سرعة عامو دوران رأس الشغلة
540 RPM
قطر عجلة التجليخ
7 "

BROWN & SHARPE "PRECISION" UNIVERSAL CYLINDRICAL GRINDER

MODEL: 814U VALUEMASTER S/N: 525-8144-2794 NEW: 1981

CAPACITY:
- GRINDS WORK UP TO ..................... 8" DIAMETER
- GRINDS LENGTH ................................. 14"
- DISTANCE BETWEEN CENTERS ...................... 24"

WHEELHEAD:
- GRINDING WHEEL SIZE ................... 7" DIAMETER
- GRINDING WHEEL SPEEDS (3) ... 2730, 3600 & 5150 RPM
- WHEELHEAD TRAVEL ........................... 8-3/8"
- WHEELHEAD SWIVELS, LEFT & RIGHT ....... 110 DEGREES

SWIVEL TABLE:
- ANGULAR SETTING TO LEFT & RIGHT ........ 90 DEGREES
- FINE SCREW ADJ. FOR SETTING TAPERS UP TO 3" PER FT.
- TABLE TRAVEL .................................. 22"
- TRAVEL PER REV. OF HANDWHEEL ............ 1/4" SLOW
6-1/4" FAST

HEADSTOCK:
- SWIVELS LEFT & RIGHT .................. 100 DEGREES
- SPINDLE SPEEDS (4) ................. 128 TO 540 RPM

EQUIPPED WITH:
POWER TABLE TRAVERSE (OPTION)
DOUBLE ENDED WHEEL SPINDLE
CURRENTLY SET-UP WITH 7" GRINDING WHEEL
DUAL LIVE/DEAD HEADSTOCK SPINDLE
B & S "ELECTRALIGN" ELECTRONIC TABLE TAPER MEASUREMENT
FINE CROSS FEED KNOB (.0001" ON WORK DIA.)
VERTICAL HANDWHEEL GRADUATED TO READ .0005"
ANTI-FRICTION BEARING WHEELHEAD SPINDLE
COOLANT PUMP & PIPING
1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR
1/6 H.P. WORKHEAD MOTOR

** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
