K.O. LEE B6062 DAKOTA SERIES, NEW 1982,أداة وكتر المطاحن

بطاقة الهوية
295356
علامة تجارية
السنة
1982
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
151317

الوصف

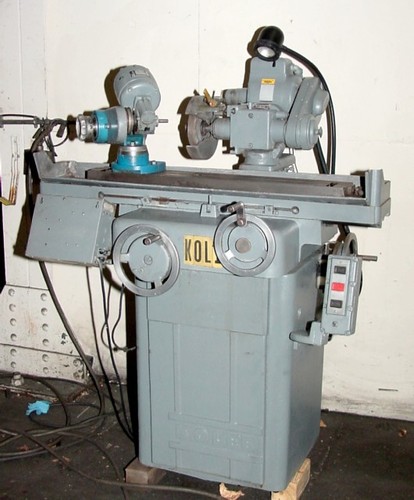

K.O. Lee B6062 DAKOTA SERIES, NEW 1982, TOOL & CUTTER GRINDER, Motorized Work Hd, with "Variable Speed Control

المواصفات

K.O. LEE "DAKOTA" SERIES UNIVERSAL TOOL & CUTTER GRINDER  WITH "TILTING" WHEELHEAD +/- 22 DEGREES OF CENTER ** MACHINE COMES WITH A K.O. LEE MOTORIZED WORKHEAD,     WITH A "MINARIK" ELECTRONIC VARIABLE SPEED CONTROL ** MODEL: B6062       S/N: 21550-NE     NEW: 1982    SWING OVER TABLE .............................. 12-1/4" DISTANCE BETWEEN TAILSTOCKS ..................... 32" TABLE WORKING SURFACE ........................... 5-1/4" X 37-1/4" SUB TABLE ....................................... 8" X 48" LONGITUDINAL TABLE TRAVERSE ..................... 20" TABLE FEED PER REV. OF HANDWHEEL: FAST ............................................ 2-13/16" SLOW ............................................ 9/16" CROSS FEED ...................................... 8" FEED PER REV. OF HANDWHEEL (.001" GRAD.) ........ 0.100" VERTICAL MOVEMENT OF COLUMN ..................... 10-1/2" FEED PER REV. OF HANDWHEEL (.001" GRAD.)......... 0.050" COLUMN DIAMETER ................................. 6"  MINIMUM/MAXIMUM DISTANCE CENTERLINE OF WHEEL SHAFT TO TABLE .................................. 5-3/8" / 15-1/4" MAXIMUM DISTANCE FROM COLUMN TO OUTSIDE  OF STRAIGHT WHEEL; DOVETAIL SLIDE NOT EXTENDED,  SPINDLE 90 DEG. TO TABLE ...................... 6-3/8" MAXIMUM DISTANCE FROM COLUMN TO OUTSIDE  OF STRAIGHT WHEEL; DOVETAIL SLIDE EXTENDED,  SPINDLE 90 DEGREES TO TABLE ................... 11-1/2" TABLE SWIVELS (CALIBRATION: 3" PER FT.,  15 DEG. EITHER SIDE OF CENTER) ................ 225 DEGREES WHEEL HEAD SWIVEL ............................... 360 DEGREES MAXIMUM I.D. DEPTH, HOLE SIZE 9/32" TO 2" ....... 3-1/2" MAXIMUM CROSS FEED SURFACE GRINDING W/8" WHEEL... 5" SPINDLE SPEED RANGE (HEAVY DUTY WHEELHEAD) .......................... 2840 TO 5330 RPM APPROXIMATE MACHINE WEIGHT ...................... 1,300 LBS    EQUIPPED WITH:K.O. LEE MOTORIZED INFINITELY VARIABLE SPEED WORKHEAD WITH 5C COLLET DRAW BAR, WITH HIGH SWING FOR THE DAKOTA SERIES MACHINE (12- ¼” SWING).WORKHEAD HAS A "MINARIK" ELECTRONIC VARIABLE SPEED CONTROL .... CONTROL THE WORKHEAD SPINDLE SPEED BY TURNING A DIAL. "DAKOTA" HEAVY DUTY #B6055HD UNIVERSAL GRINDING WHEELHEAD FEATURES: - SWIVELLING & TILTING (22 DEG. EITHER SIDE OF VERTICAL) - 1 HP MOTOR WIRED FOR 3/60/220-440 VOLT OPERATION - 3-1/2" TO 8" DIAMETER WHEELS MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS   ** EXCELLENT CONDITION & APPEARANCE ** ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
