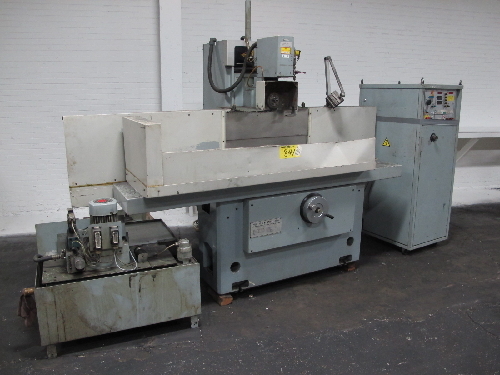

ELB PERFEKT 6NDالمطاحن سطح الترددية

بطاقة الهوية
311350
علامة تجارية
موديل
السنة
1990
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
152326

الوصف

12" Width 24" Length Elb Perfekt 6 ND PERFEKT 6ND PERFEKT 6ND SURFACE GRINDER, AUTO IDF, AUTO WHEEL DRESS w/COMP, EMC, COOLANT

المواصفات

تحويل المواصفات للمتري
الجدول-W
12 "
الجدول-L
24 "

12" X 24" ELB "PERFEKT" SERIES HIGH-PRECISION

  SURFACE GRINDER W/AUTOMATIC INCREMENTAL DOWN FEED

  PROGRAMMABLE OVERHEAD WHEEL DRESSER W/AUTO COMPENSATION





MODEL: PERFEKT 6ND     S/N: 21.259 0690      NEW: 1990



WIDTH X LENGTH GROUND (NOMINAL CAP.) ......... 12" X 24"

MAXIMUM TABLE TRAVEL ......................... 28"

MAXIMUM CROSS FEED TRAVEL .................... 14"

MAXIMUM HEIGHT UNDER A 12" WHEEL ............. 16"

STANDARD GRINDING WHEEL ...................... 12"D X 2"W X 3"B

MAX. WHEEL WIDTH ............................. 3"

SPINDLE SPEEDS ............................... 1,500 / 3,000 RPM



HYDRAULIC TABLE SPEED ..................... 1 TO 30 METERS PER MINUTE

AUTO CROSS FEED RATE ...................... 0.04" TO 1.6"

RAPID CROSS FEED RATE ..................... 47" IPM



VERTICAL FEED RATE, MINIMUM AMOUNT ........ 0.00001"

ROUGHING DOWNFEED AMOUNT .................. 0.0001" TO .001"

FINISHING VERTICAL AMOUNT ................. 0.00001" TO 0.00012"

SPARKOUT TIME ............................. 3 SEC. TO 3 MINUTES

VERTICAL FEED RATE ........................ 7" IPM



APPROX. MACHINE TOOL DIMS. ........... 96" x 74" x 96"H

HYDRAULIC SYSTEM ..................... 24" x 20" x 36"H

COOLANT SYSTEM ....................... 24" x 20" x 36"H

CONTROL CABINET ...................... 25" x 36" x 68"



APPROX. MACHINE WEIGHT ................ 7,800 LBS.



EQUIPPED WITH:

FULLY AUTOMATIC OPERATION FOR X, Y & Z AXES

ULTRA FINE PROGRAMMABLE DOWNFEED INCREMENTS, .00001" .... YES, THAT IS RIGHT!

HYDRAULIC TABLE TRAVERSE

DIGITAL CONTROL FOR VERTICAL & CROSS FEED MOVEMENTS

AUTO WHEEL RETRACT AT THE END OF THE GRIND CYCLE

MICRO-GRANTE MACHINE BASE

GUIDEWAYS ARE PLASTIC COATED

COLUMN MOVES FOR CROSSFEED

COMPLETE COOLANT SYSTEM FOR "WET" GRINDING

POWER WHEEL DRESSER WITH AUTOMATIC COMPENSATION

12" X 24" FINE-DIVISION ELECTRO-MAGNETIC CHUCK

VARIABLE HOLD NEUTROFIER CONTROL BUILT INTO CABINET CONTROL

12" x 2" x 3" STANDARD WHEEL, WITH A MAX. WIDTH OF 3"

5.7 H.P. SPINDLE MOTOR

MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS



MACHINE HAS BEEN SERVICED & PREPARED FOR DEMONSTRATION

 BY MR. SEMYON VALSHTEIN OF ELB SERVICE,

 CELL PHONE  (732) 841-4630.



  ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **





       LINK TO VIDEO OF MACHINE UNDER POWER:

http://youtu.be/criOUIjhBBA



  ** EXCEPTIONAL CONDITION& APPEARANCE

  - UNUSUAL OPPORTUNITY TO BUY THE WORLD'S

   FINEST SURFACE GRINDERS **



  ** MACHINE IS MADE IN GERMANY **



FOR MORE INFORMATION: Call Andy at 973-497-7600
