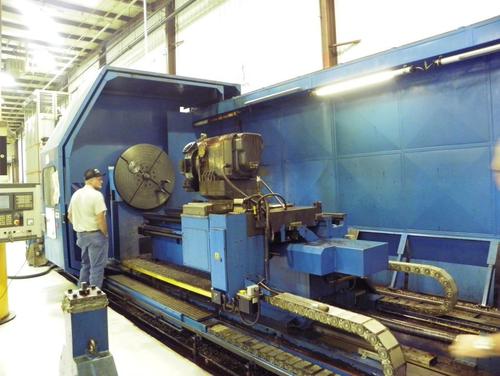

BINNS & BERRY DATA 1000مخارط CNC

بطاقة الهوية
319913
علامة تجارية
موديل
النوع
حالة
مستعملة - جيد
السنة
2001
الموقع
Ohio
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
رقم المخزن
30811
نطاق السعر
$50,001 - $100,000 USD

الوصف

Machine is located in our Dayton OH warehouse and can be inspected under power by appointment.

المواصفات

تحويل المواصفات للمتري
سعة العامود
6 "
القدرة
50 hp
قطر الخراطة
31 "
الأرجحة
39.3 "
بالقطع طول
157.4 "
CNC تحكم
CNC (Fanuc 18i-TA)

Specifications:
Swing Over Bed Plate (in Gap) – 120”
Adjustable Gap Width From Nose – 0-72”
Center Distance, Gap Closed – 98.4”
Center Distance, Gap Open – 157.4”
Swing Over Machine Bed – 39.3”
Swing Over Cross Slide – 31.5”
Z-Axis Along Machine Bed – 98.4”
X-Axis Cross Travel - 19.6”
Spindle Bore – 5.9”
Spindle Nose – A2-15
Spindle Speeds – 2.3 to 1000 RPM
Spindle HP, Continuous – 50 HP
Tailstock Quill Diameter – 6.7” x #6MT
Unsupported Weight Capacity – 17,600 Lbs.
Machine Weight, Approx -

Equipped with:
Fanuc 18iTA CNC Control
Fanuc AC Variable Frequency Servo Drives
Fanuc AX Variable Frequency Spindle Drive Motor
Spindle Speeds Infinitely Variable, CSFM Programming
Three Range Headstock with Automatic M Code Programmable Change
Powered Sliding Machine Bed Movement with Hydraulic Clamping
120” Swarf Chip Conveyor
SAUTER 8 Position Vertical Disk Turret
120” Gap
72” Travel in Gap
Tailstock
Faceplate with T-Slots
12” Full Surround Steady with Roller Jaws
Flood Coolant
