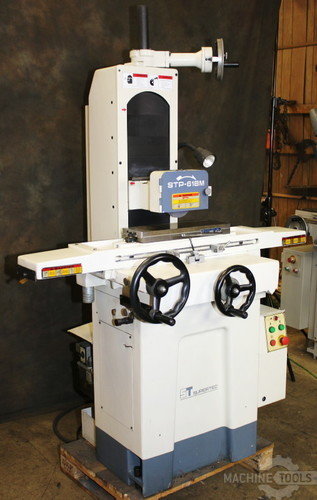

SUPERTEC STP-618Mالمطاحن سطح الترددية

بطاقة الهوية
322049
علامة تجارية
موديل
السنة
2003
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
152558
صور ( 10 ) / فيديو

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على SUPERTEC STP-618M ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
322049
علامة تجارية
موديل
السنة
2003
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
152558

الوصف

6" Width 18" Length Supertec STP-618M SURFACE GRINDER, ROLLER BEARING TABLE, NEW FINE-DIV. PMC, 220 VOLTS

المواصفات

تحويل المواصفات للمتري
الجدول-W
6 "
الجدول-L
18 "
عامود الدوران (أفقى/رأسى
Horz
القدرة
3 hp
عرض عجلة التجليخ
6 "
قطر عجلة التجليخ
0.5 "

SUPERTEC HAND FEED -MANUAL SURFACE GRINDER MODEL: STP-618M          S/N: NEW: 2003 SPECIFICATIONS:TABLE SIZE:  6" X 18"GRINDING CAPACITY: 6" X 19"GRINDING WHEEL SIZE:8" DIAMETER X 1/2" WIDTH  X 1-1/4 HOLESTANDARD CHUCK SIZE: 6" W X 18" LTABLE SURFACE TO SPINDLE CENTER DISTANCE: 19"LONGITUDINAL MOVEMENT TRAVERSE DISTANCE:20" CROSS MOVEMENT TRAVERSE DISTANCE:7"CROSS MOVEMENT HANDWHEEL PER REVOLUTION: 0.2"CROSS MOVEMENT HANDWHEEL PER GRADUATION:  0.001"VERTICAL DOWNFEED HANDWHEEL PER REVOLUTION:  0.05"VERTICAL DOWNFEED HANDWHEEL PER GRADUATION: 0.0001"WORK TABLE FLATNESS ACCURACY:  0.00012"LONGITUDINAL MOVEMENTPARALLELISM ACURACY:  0.0001/18" PER DISTANCECROSS MOVEMENT PARALLELISM ACCURACY: 0.000080/6" PER DISTANCESPINDLE PARALLEL TO WORK TABLE ACCURACY: 0.003/12" PER DISTANCETABLE ACCURACY : 0.0003/12" PER DISTANCEWHEEL TAPER RUN-OUT ACCURACY:  0.000060" GRINDING WHEEL SPINDLE SPEEDS: 3450 RPMSPINDLE MOTOR: 3 HP, 220/44O VOLTS, 3 PHASE, 60 HZ EQUIPPED WITH:"New" Fine-Division" Permanent Magnetic Chuck FLOOR SPACE DIMENSIONS: 76" X 43" 88" WEIGHT:. 1,520 LBS   STANDARD FEATURES • Hand Feeds - Manual operation model • All castings are tempered and stress relieved twice to assure stability of the machine structure and resist deflection under load • Hardened and ground column ways with cast spindle slide is precision fit for no "hang-up" gravity downfeed • 3 HP V3 Grade spindle motor for powerful output to achieve precisionwork standards and better grinding capability • Cartridge spindle with four preloaded class 7 P4 bearings and run-outof taper nose better than 0.000060” T.I.R. provides quiet, vibration freeoperation for better workpieces accuracy   • The table traverses on linear ball bearings with hardened and ground guide ways to ensure a smooth and easy movement of the table • Double V cross ways are hand scraped and Turcite coated for greater flatness and high wear resistance • Indexable table handwheel for ease of operation • Vertical handwheel at the waist level  • The automatic lubrication system continuously floods saddle and column ways, bearings, and leadscrews for better machine performance and less maintenance • Wheelhead variable spindle speeds as options • 0.000050” Micro downfeed and micro crossfeed as options • Voltage requires 220V/440V/3 Phase/60 Hz., prewired 220V   *** 2003 Machine in Superb Condition - Very Quiet Spindle, Smooth Table ***** Inspect Under Power in our Harrison, NJ Warehouse ***

FOR MORE INFORMATION: Call Andy at 973-497-7600
