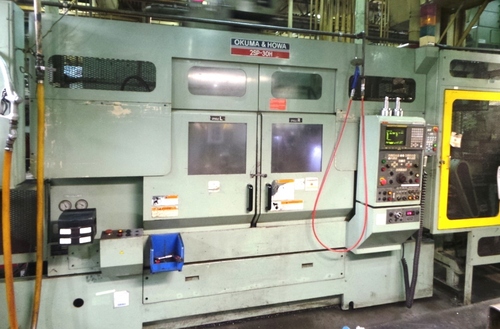

OKUMA & HOWA 2SP-30-HGمخارط CNC

بطاقة الهوية
324533
علامة تجارية
موديل
النوع
حالة
مستعملة - جيد
السنة
1998
الموقع
Wisconsin
الولايات المتحدة الامريكية

الوصف

2008 OKUMA HOWA 2SP-30-HG CNC TWIN SPINDLE TURNING CENTERS WITH OVERHEAD GANTRY LOADER. ALL TOOL HOLDERS AND OPTIONS INCLUDED. *Machine Mfg. 1998 Fully Reconditioned in 2008 * Full Details Re-Conditioning Email on request

المواصفات

تحويل المواصفات للمتري
حجم الظرف
10 "
سعة العامود
3.02 "
القدرة
30 hp
ماكس RPM
3500 rpm
قطر الخراطة
12.2 "
الأرجحة
17.72 "
بالقطع طول
12 "
الأبعاد
215" x 152" x 160"
الوزن
24,200 Lbs.
CNC تحكم
CNC (Fanuc 18T CNC Control)

2008 OKUMA HOWA 2SP-30-HG CNC TWIN SPINDLE TURNING CENTERS WITH
OVERHEAD GANTRY LOADER. ALL TOOL HOLDERS AND OPTIONS INCLUDED.
Machine Mfg. 1998 Fully Reconditioned in 2008 Under power in Plant Installed for Inspection
*Full Details Re-Conditioning on request.

SPECIFICATIONS:
BASE MACHINE CAPACITY:
MAXIMUM CUTTING DIAMETER.........14.96"
MAXIMUM CUTTING LENGTH..............9.06"
DISTACE BETWEEN SPINDLES..........17.72"
SPINDLE CENTER HEIGHT FLOOR... 47.44"

SPINDLES:
SPINDLE MOTORS FANUC Alpha X 2....30 HP
SPINDLE SPEED RANGE.......... 45- 3,500 RPM
STANDARD CHUCK DIAMETER..10" 3-Jaw Opt.12' Diameter Capacity
SPINDLE NOSE.............................. A2-8
DRAWTUBE THROUGH HOLE DIA. 3.02"

TURRETS:
TURRET TYPE
(FANUC ALPHA 6/2000 MOTOR)..V12 + V12
CURVIC COUPLING DIAMETER.............6.61"
CLAMPING FORCE.........................6,173 LBS
INDEXING TIME(STATION TO STATION).............0.3 SEC.
STANDARD TOOL SIZE.................1.0" X 1.0"
MAXIMUM BORING BAR SIZE.......1.75" OD

MACHINE SIZE & MASS:
FLOOR SPACE REQUIREMENTS..................215" X 152" x 160"
MACHINE WEIGHT.......................................24,200 LBS

CNC LOADER INFORMATION: GANTRY LOADER IS A 3-AXIS SINGLE ARM
MAX SPEED 4,724 IPM, 2-TWIN 2-JAW LOADER ON GRIPPERS FOR SHAFT
APPLICATION. *Optional 3-Jaw Loader Hand Chucks Available.

OVERHEAD GANTRY LOADER SPEEDS / TIMES:
LONGITUDINAL (LEFT/RIGHT)
A AXIS..........................................4724 IPM
A AXIS STROKE...........................77.17"
VERTICAL B-AXIS.......................3937 IPM
B-AXIS STROKE..........................33.46"
HORIZONTAL (IN/OUT) C AXIS..1575 IPM
C AXIS STROKE..........................11.02"
LOADING TIME............................12 SECONDS
MINIMUM CYCLE TIME...............45 SECONDS

LOADER AND TURNOVER CHUCKS:
JAW STROKE............................................1.57"
ACTUATION METHOD............... FORCED AIR

EQUIPPED WITH:
SPECIAL 2-UNIT TAILSTOCK OPTION FOR PART SUPPORT OPTION.
(1) OVERHEAD GANTRY LOADER
FANUC 18T CNC CONTROL
ENOMOTO HEAVY DUTY REAR DISCHARGE CHIP CONVEYOR
ALL COOLANT TANKS AND ALL PUMPS INSTALLED INCLUDED
ALL TOOL HOLDERS WITH EACH MACHINE
ALL FACTORY BOOKS AND MANUALS

SPECIAL OFFERED PRICE with TAILSTOCKS & ALL OPTIONS:....$ Please Call or Email.

Note: Price is Subject to Change after Removal from plant 30-60 Days
Special Optional Tail Stocks Unique 50k Option.

I look forward to reviewing any questions.
The Machine is in plant under power in operation ready to inspect.

F.O.B.: Machine Price Includes Prep & Loading on Truck on Location.

TERMS: Payment in full prior to Shipment.
I thank you for the opportunity to quote.

Sincerely,
Mark V. Murphy
Murphy Machinery Sales, Inc.
Office 262-534-4124
Mobile 414-520-0843

markmurphy@murphymachinery.com
www.murphymachinery.com
