STOCK NO. ET-4952

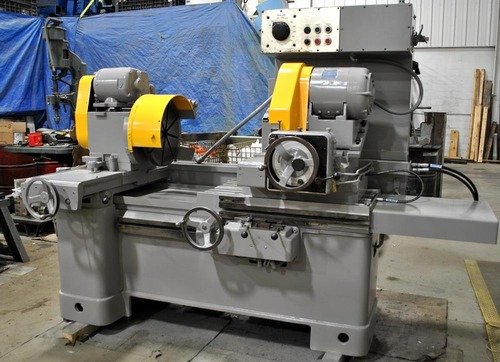

(1) USED HEALD MODEL 273-A UNIVERSAL GRINDER

Serial No. 42629 New: 1967

Swing over Table: 20"
Swing, Workhead Swivelled 90 degrees: 15"
Angular adjustment of Workhead: 90 Degrees
Workhead Cross Slide Travel: 11 1/2"
Table Travel: 20" Max.
Wheelhead Cross Slide Travel: 1 1/2"
Table Speed Range: 0 to 18 FPM
Rapid Traverse of Table: 18 FPM
Workhead Speeds from 0 to 500 RPM, Variable
Equipped with:
Coolant System
(1) Heald Red Head grinding spindle: 14,000 RPM
16" Diameter Face Plate
Dressing attachment
Hydrostatic Ways
Electrical Motors & Controls
Dimensions: FB X RL - 62" X 92"
Height: 77"
Est. Weight: 7,000#

Location: Wixom, Michigan
