LANDIS 1Rالمطاحن الأسطوانية العالمي

بطاقة الهوية
327428
علامة تجارية
موديل
السنة
1982
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
153024

الوصف

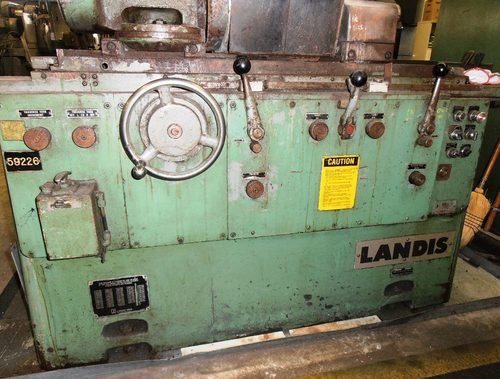

10" Swing 20" Centers Landis 1R OD GRINDER

المواصفات

تحويل المواصفات للمتري
الأرجحة
10 "
المراكز
20 "
القدرة
3 hp
موتور رأس الشغلة
0.5 hp
سرعة عامو دوران رأس الشغلة
600 RPM
قطر عجلة التجليخ
12 "

10" X 20" LANDIS HYDRAULIC UNIVERSAL CYLINDRICAL GRINDER  MODEL: 1R   S/N: 884-95    NEW: 1982   NOMINAL SWING OVER TABLE ........................... 10"MAXIMUM SWING OVER TABLE ............................ 10-7/8" NOMINAL DISTANCE BETWEEN CENTERS .................... 20" HYDRAULIC TABLE TRAVERSE ............................ 2" TO 240" IPM TRAVERSE PER TURN OF HANDWHEEL ...................... 0.200" TRAVERSE HANDWHEEL GRADUATIONS ...................... 0.001" SWIVEL TABLE GRADUATED .............................. 20 DEGREES, 4" PER FOOT  WHEELHEAD: WHEELHEAD SWIVELS LEFT & RIGHT OF CENTER ............ 90 DEG. WHEEL SIZE .......................................... 12" DIAMETER MAXIMUM WIDTH, FULL WHEEL ........................... 3" MAXIMUM HYDRAULIC INFEED - ON DIAMETER .............. 0.090" RAPID INFEED STROKE ................................. 1" MINIMUM FEED GRADUATIONS - ON DIAMETER .............. 0.000050" WORK DIAMETER REDUCTION PER REVOLUTION OF HANDWHEEL ........................................... 0.100" WORK DIAMETER REDUCTION PER REVOLUTION OF FINE FEED KNOB ...................................... 0.001" WHEELHEAD MOTOR ..................................... 5 HP  WORKHEAD: WORKHEAD SWIVELS TOWARD WHEELHEAD ................... 90 DEGREES WORKHEAD SWIVELS AWAY FROM WHEELHEAD ................ 30 DEGREES WORKHEAD SPINDLE SPEEDS (6) ......................... 60 TO 600 RPM WORKHEAD SPINDLE NOSE ............................... A2-5" WORKHEAD MOTOR ...................................... 1/4 HP  APPROXIMATE WEIGHT .................................. 4,150 LBS APPROXIMATE DIMENSIONS .............................. 8'L X 4'W X 6'6"HT    EQUIPPED WITH:HYDRAULIC TABLE TRAVERSEAUTO INFEED @ TABLE REVERSALS AUTO PLUNGE FEED POWER RAPID WHEELHEAD ADVANCE & RETRACTION SPARKOUT TIMER LIVE SPINDLE HEADSTOCK UNIVERSAL WHEELHEAD AND UNIVERSAL WORKHEAD 12" DIAMETER x 3" WIDTH x 5" BORE GRINDING WHEEL HARD FILM MICROSHERE WHEEL SPINDLE BEARINGS COOLANT SYSTEM CARRIAGE AND WHEELHEAD WAYS ARE AUTOMATICALLY LUBRICATED MACHINE MOTORS ARE WIRED FOR 3/60/220-440 VOLT OPERATION    * * EXCELLENT CONDITION * *** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
