ELB SWR-40TNCKالمطاحن سطح الدوارة

بطاقة الهوية
332830
علامة تجارية
موديل
السنة
1982
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
153220

الوصف

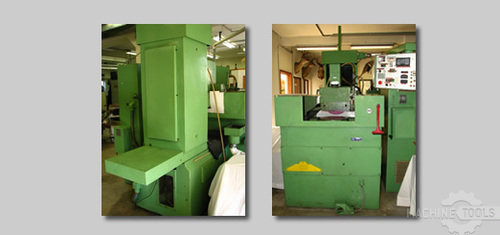

16" Chuck Elb SWR-40TNCK ROTARY SURFACE GRINDER, AUTO IDF, PROGRAMMABLE CYCLE,

المواصفات

16" ELB (Made in Germany) Horizontal Spindle Rotary Surface Grinder Model: SWR 40T NC-K        S/N:  178560-182        New: 1982  Diameter Electro-Magnetic Chuck: 16" Table Diameter that the Electro-Magnetic Chuck Sits on:  20"Height Under New 14" Diameter Wheel: 12" Distance, Center of the Magnetic Chuck to the Grinding Wheel, with a 1.5" Wide Wheel:  12.25"Swing Inside Work Area:  26.25"Infinitely Variable Table Speeds: 20 to 65 rpm Continuous Cross Feed, Feed Rate Infinitely Variable (inches per minute): 4" to 40" Rapid Vertical Traverse: 6" IPM  Infinitely Variable Automatic Incremental Downfeed: 0.0001" to .0025" Grinding Wheel Speeds (2): 1,750/3,450 RPM Grinding Wheel Size: 14" x 4" x 5" Bore  Footprint: 96" Lg, 86" W, 72" H Approx. Machine Weight: 8,000 lbs. Equipped With: Programmable Auto Cycle Controller: system includes digital readout display & thumb wheel  controlled pre-dimension & finish settings, including +/- correction, presetting & zero button. Automatic downfeed & sparkout timer. Retract of spindle to start position @ completion of cycle. Programmable auto wheel dressing w/compensation. Dressing & compensation take place each time at pre-dimension automatically at cycle or push button controlled within grinding cycle. This amount is automatically added to the readout display. Traveling Column Design for the Reciprocation of the Grinding Wheel over the Electro-Magnetic Chuck.Pendant Control (All Machines Functions) 16" Electro-magnetic Chuck w/ Variable Hold Neutrofier Radial Pole (Clover Leaf) Ring Pattern Table Drive is provided by Electric D.C. Motor Drive Cross Feed is provided by Electric D.C. Motor Drive Automatic Central Lubrication Factory optional 14" Wheel Serviced by ELB Factory Technician....Mr. Semyon Valshtein....973-993-9644 Also, extra service parts for the machine and repair manual  video under power:http://youtu.be/cw7A6TVO-l4  ** Inspect Under Power in our Harrison, NJ Warehouse ** ** Superb Condition & Appearance - Really as Nice as could be! **

FOR MORE INFORMATION: Call Andy at 973-497-7600
