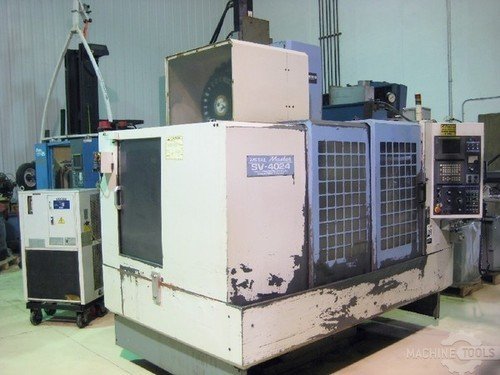

SHIZUOKA SV-4024مراكز التجهيز العمودي

بطاقة الهوية
346110
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
2000
الموقع
Wisconsin
الولايات المتحدة الامريكية
رقم المخزن
12,000 RPM

الوصف

SHIZUOKA SV-4024 CNC MILL, FANUC 18i-M, 40 x 24 x 20, 30 HP, 12000 RPM, COOL THRU SPINDLE, 24 SIDE TOOL CHANGER, BOX WAY DATE OF MANUFACTURE 2000 TABLE SIZE 47" x 27.6" MAXIMUM PALLET LOAD 2,205 LBS SPINDLE NOSE TO PALLET TOP 5.9" - 26" X AXIS TRAVEL 40.2" Y AXIS TRAVEL 24" Z AXIS TRAVEL 20.1" RAPID TRAVERSE RATE X & Y AXIS 1575 IPM CUTTING FEED RATE 0.4 - 630 IPM SPINDLE TAPER CAT 40 SPINDLE SPEEDS 100 - 12,000 RPM SPINDLE MOTOR 30 HP TOOL CHANGER CAPACITY, SIDE MOUNT 24 (SWING-ARM CAM) SLIDING DOOR OPEN WIDTH 50" MAXIMUM TOOL WEIGHT 17.6 LBS WEIGHT, APPROX. 17,000 LBS DIMENSIONS, APPROX. 100"L x 103"W x 117"H Equipped With: FANUC 18i-M CNC CONTROL w/9" MONITOR, RS-232C PORT INTERFACE FOR DNC OPERATION, RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING), CHIP BLASTER COOL-THRU-SPINDLE UNIT (2000 PSI), (2) TURBO REAR DISCHARGE CHIP CONVEYORS, KAMUI SPINDLE & OIL CHILLER, REMOTE PULSE GENERATOR HAND-WHEEL, SIDE MOUNTED AUTO-TOOL CHANGER (SWING-ARM CAM), COOLANT SYSTEM WITH TANK & PUMP, FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS ****RIGID BOX WAY CONSTRUCTION**** *******30 HP HIGH-SPEED SPINDLE******* ***********A QUALITY JAPANESE MACHINE TOOL************ See More at www.mwmachinery.com

المواصفات

تحويل المواصفات للمتري
X
40 "
Y
24 "
Z
20 "
القدرة
20 hp
RPM
12000 rpm
# ATC
24
الجدول-W
24 "
الجدول-L
48 "
انحناء
CAT-40
أكسات
3
الأبعاد
145x102x110
الوزن
17000
CNC تحكم
CNC (FANUC 18iM)

DATE OF MANUFACTURE 2000
TABLE SIZE 47" x 27.6"
MAXIMUM PALLET LOAD 2,205 LBS
SPINDLE NOSE TO PALLET TOP 5.9" - 26"
X AXIS TRAVEL 40.2"
Y AXIS TRAVEL 24"
Z AXIS TRAVEL 20.1"
RAPID TRAVERSE RATE X & Y AXIS 1575 IPM
CUTTING FEED RATE 0.4 - 630 IPM
SPINDLE TAPER CAT 40
SPINDLE SPEEDS 100 - 12,000 RPM
SPINDLE MOTOR 30 HP
TOOL CHANGER CAPACITY, SIDE MOUNT 24 (SWING-ARM CAM)
SLIDING DOOR OPEN WIDTH 50"
MAXIMUM TOOL WEIGHT 17.6 LBS
WEIGHT, APPROX. 17,000 LBS
DIMENSIONS, APPROX. 100"L x 103"W x 117"H

Equipped With:
FANUC 18i-M CNC CONTROL w/9" MONITOR,
RS-232C PORT INTERFACE FOR DNC OPERATION,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
CHIP BLASTER COOL-THRU-SPINDLE UNIT (2000 PSI),
(2) TURBO REAR DISCHARGE CHIP CONVEYORS,
KAMUI SPINDLE & OIL CHILLER,
REMOTE PULSE GENERATOR HAND-WHEEL,
SIDE MOUNTED AUTO-TOOL CHANGER (SWING-ARM CAM),
COOLANT SYSTEM WITH TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
****RIGID BOX WAY CONSTRUCTION****
*******30 HP HIGH-SPEED SPINDLE*******
***********A QUALITY JAPANESE MACHINE TOOL************
See More at www.mwmachinery.com
