HARDINGE CONQUEST 51مخارط CNC

بطاقة الهوية
348679
علامة تجارية
موديل
النوع
السنة
1992
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
151750
الثمن

الوصف

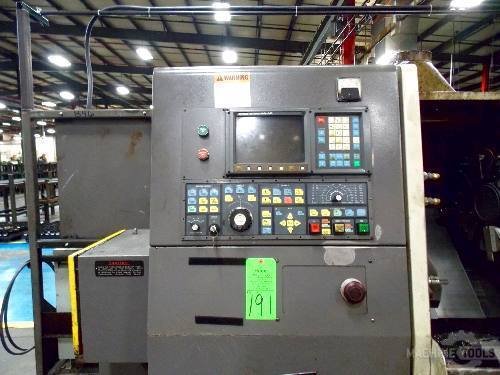

Hardinge CONQUEST 51 CNC LATHE, Fanuc 18T

المواصفات

تحويل المواصفات للمتري
سعة العامود
2.94 "
أكسات
3
القدرة
20 hp
ماكس RPM
3000
الأرجحة
26 "
بالقطع طول
23 "
غراب
Yes
CNC تحكم
CNC (Fanuc OTC)

HARDINGE CONQUEST T51 CNC LATHE, NEW: 1995

SPECIFICATIONS:
SPINDLE CONFIGURATION (ANSI)............. 12-6"
ROUND COLLET (THROUGH CAPACITY).......... 2" (20C)
AC DIGITAL DRIVE SYSTEM:
STANDARD................................. 20 HP
TORQUE RATING @ 525 RPM.................. 200 FT - LB
SPEED RANGE (1 RPM STEPS)................ 50 TO 4,200
CARRIAGE AND CROSS SLIDE:
SWING DIAMETER OVER UPPER WAY COVER...... 26"
PRELOADED BALL SCREW DIAMETER............ 1.417"
X-AXIS TRAVEL (MAX.)..................... 6.75"
X-AXIS RAPID TRAVERSE RATE............... 630 IPM
Z-AXIS RAPID TRAVERSE RATE............... 630 IPM
Z-AXIS (DRILLING) THRUST (MAX.).......... 2,250 LBS.
BI-DIRECTIONAL VERTICAL TURRET:
NO. OF STATIONS.......................... 12 (6 LIVE OPT)
SQUARE SHANK TOOL SIZE (MAX.)............ 1"
ROUND SHANK TOOL SIZE (MAX.)............. 1-1/2"
DISTANCE FROM SPINDLE FACE TO TURRET MAX. 23.12"
TURNING DISTANCE (MAX.).................. 22.625"
TAILSTOCK:
CENTER TAPER............................. MT NO.4
TRAVEL (MAX.)............................ 19"
RAPID TRAVERSE AND RETURN RATE........... 350 IPM
THRUST (MAX)............................. 1,100 LBS.
MISCELLANEOUS:
COMPRESSED AIR REQUIREMENT............... 70 TO 90 PSI
HYDRAULIC TANK CAPACITY.................. 10 US GALLONS
COOLANT TANK CAPACITY.................... 40 US GALLONS
APPROX. SHIPPING WEIGHT (BASE MACHINE)... 15,000 LBS.
MACHINE DIMENSIONS:
LENGTH................................... 110.4"
DEPTH.................................... 68.7"
HEIGHT................................... 71"
ELECTRICS................................ 220V, 3PH, 60 CYC

EQUIPPED WITH:
- GE FANUC 18TA WITH CAP I 32 BIT CONTROL W/COLOR CRT AND
CONVERSATIONAL OR G CODE PROGRAMMING
- 12 STATION TURRET
- TAILSTOCK WITH PROGRAMMABLE BODY
- BARFEED INTERFACE
- LIVE TOOLING CAPABILITIES
- C-AXIS

* EXCELLENT CONDITION *

FOR MORE INFORMATION: Call Mike at 973-497-7540
