T.J. SNOW COMPANYلحام الإسقاط

بطاقة الهوية
353311
علامة تجارية
T.J. SNOW COMPANY
السنة
2014
الموقع
Tennessee
الولايات المتحدة الامريكية
رقم المخزن
6555
20140801 100006 hdr
صور ( 5 )
بطاقة الهوية
353311
علامة تجارية
T.J. SNOW COMPANY
السنة
2014
الموقع
Tennessee
الولايات المتحدة الامريكية
رقم المخزن
6555

الوصف

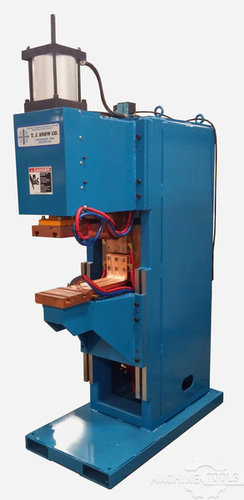

New T. J. Snow Heavy Duty Press Type Projection Welder: Fabricated steel frame with guided roller ram and spring assist fast follow-up, RoMan 150 KVA / 440 Volt / Single Phase A/C water cooled machine type welding transformer, Eighteen (18) inch throat depth to centerline of platens, Twenty (24) inch throat depth to centerline of electrodes (with platen mounted arms installed), Eight (8") diameter standard dual acting Air Cylinder capable of producing up to 4,020 lbs. of weld force at 80 PSI. Projection platens will be 8” x 8” with (5½”) T-slot spacing. Spot welding arms can be quoted as an option. The lower knee is designed with guides for manually raising and lowering the knee to accommodate various part dimensions. Machine initiation will be Dual Palm Buttons with anti-tie down / anti-repeat circuitry, mounted to the machine crown or a shrouded foot switch, Machine paint color is Safety (Medium) Blue, Machine will be equipped with a New Entron Model EN1000-1200E Microprocessor Type Welding Control with a 1200 ampere water cooled SCR firing contactor, Note: Welder does not currently have a weld control. Other brands of weld controls can be installed.
