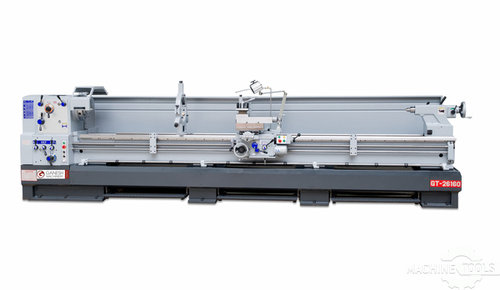

GANESH GT-26160مخارط الفجوة

بطاقة الهوية
363251
علامة تجارية
موديل
حالة
الجديد في المخزن
السنة
2018
الموقع
California
الولايات المتحدة الامريكية
الثمن
Gt26160nl
صور ( 3 )

التنزيلات

GANESH GT-26160 (3 MB )

بطاقة الهوية
363251
علامة تجارية
موديل
حالة
الجديد في المخزن
السنة
2018
الموقع
California
الولايات المتحدة الامريكية
الثمن

الوصف

GANESH GTW-26 Precision Lathe Series 26” Swing, 40” – 160” between centers, Electric Motor Driven Rapid Traverse Feeds 15-HP Spindle Motor Spindle Speeds from 15 – 1200 RPM 12-Spindle Speed Gear-Ranges for High-Torque D1-11 Camlock Spindle (A1-11 optional) 4-1/8” Spindle Bore Rapid Traverse Axis Feeds Efficient 2-Speed Quill Advance 33-1/4” Swing in 6.5” Wide Gap

المواصفات

تحويل المواصفات للمتري
الأرجحة
26 "
دوران فوق الفجوة
33.38 "
المراكز
160 "
ثقب عامود الدوران
4.125 "
القدرة
15 hp
RPM
1200 rpm
انحناء
MT-5

Capacity & Dimensions-
Swing over Bed 26” (660mm)
Center height 13” (330mm)
Swing over Cross Slide 18-1/16” (460mm)
Swing thru Gap 33-1/4” (845mm)
Length of Gap in front of faceplate, D1-11 6-1/2” (165mm)
Bed width 16-1/8” (400mm)
Spindle-
Spindle Motor Horsepower 15-HP 3-Ph 12kw
Spindle speeds – 12-speeds from 15 – 1200 rpm) (High & Low speed range)
Spindle Bore 4-1/8” (105mm)
Spindle Nose D1-11 Camlock (A1-11 optional)
Spindle taper in spindle nose MT-8 Morse Taper # 8
Spindle taper reduction sleeve provided MT-5 MT-8 to MT-5
Spindle Max weight capacity (Chuck only) 660 lbs (300kgs)
Spindle Max weight capacity (Chuck and Tailstock) 1,650 lbs (750kgs)
Spindle Max weight capacity (Chuck, Steady Rest and Tailstock) 3,300 lbs (1,500kgs)
Carriage -
Cross slide travel 14.96” (380mm)
Cross slide width 7-3/32” (180mm)
Cross slide lead screw pitch .200”/rev.
Cross slide resolution per division 0.001” (on diameters)
Carriage lead screw diameter 1-1/2” (38mm)
Carriage lead screw pitch 4 TPI (6mm pitch)
Compound- Four T-nut lock-down bolts on compound cross-slide base
Compound top slide travel 10” (255mm)
Compound top slide width 4-11/32” (110mm)
Cutting tool height maximum 1.0” x 1.0” 25mm x 25mm
Tailstock- (2-speed quill advance) Engraved with inch / metric quill graduations
Quill diameter 2-15/16” (75mm)
Quill stroke 6-5/16” (160mm)
Quill taper MT-5 Morse Taper # 5
Tailstock body set-over adjustment ± ½” (± 13mm)
Thread Cutting-
Thread cutting range – 60 inch pitches 2 – 112 TPI 2 – 112 TPI
Thread cutting range – 60 metric pitches 0.2 – 14mm 0.2 – 14mm
Thread cutting range – 50 diametral pitches 4 – 112 D.P. 4 – 112 D.P.
Thread cutting range – 50 module pitches 0.2 – 7 M.P. 0.2 – 7 M.P.
Feeds- (with clutched feed shaft for safety)
Feeds – longitudinal - 50 feeds 0.0014” – 0.0387”/rev. 0.037 – 1.04mm/rev.
Feeds – cross - 50 feeds 0.0007” – 0.01935”/rev. 0.0185” – 0.52mm/rev.
Power Requirements 220 vac, 3-Phase, 42-amps (440vac optional)
Coolant System 1/8-HP Pump Motor, 5 gallon (20L) tank capacity
