BROWN & SHARPE #1المطاحن الأسطوانية العالمي

بطاقة الهوية
364410
علامة تجارية
موديل
السنة
1967
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
154251

الوصف

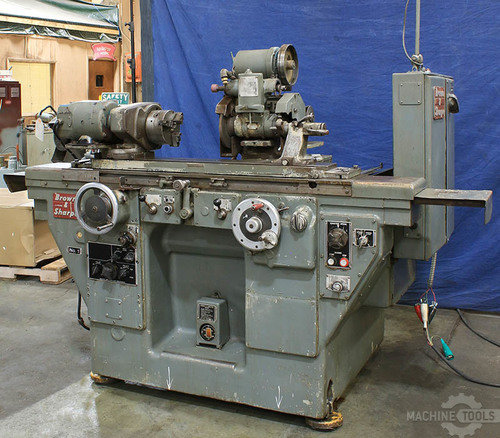

10" Swing 20" Centers Brown & Sharpe No. 1 OD GRINDER, HYD. TABLE & AUTO INFEED, DOUBLE SWIVEL WHEELHEAD

المواصفات

تحويل المواصفات للمتري
الأرجحة
10 "
المراكز
20 "
القدرة
1.5 hp
سرعة عامو دوران رأس الشغلة
600 RPM
قطر عجلة التجليخ
10 "

10" X 20" BROWN & SHARPE UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER ** B & S I.D. ATTACHMENT & I.D. SPINDLE AVAILABLE TO PURCHASE FOR THIS MACHINE **       MODEL:  #1        S/N: 521-1-790    NEW:  1967                                                              SWING OVER TABLE .................................. 10"  DISTANCE BETWEEN CENTERS, NOMINAL ................. 20"  DISTANCE BETWEEN CENTERS, MAXIMUM ................. 22-3/4"  GRINDING WHEEL MOTOR .............................. 2 HP  WHEELHEAD SPINDLE SPEEDS .......................... INFINITELY VARIABLE  GRINDING WHEEL SIZE ............................... 10" X 1" X 3"  SWIVEL AT THE WHEELSLIDE .......................... 90 DEGREES EITHER WAY  WHEEL SPINDLE SWIVELS ............................. 90 DEGREES EITHER WAY                                                           HEADSTOCK MOTOR ................................... 1/4 HP  INFINITELY VARIABLE SPINDLE SPEEDS ................ 60 TO 600 RPM  HEADSTOCK SPINDLE NOSE TAPER ...................... A2-5"  HEADSTOCK SWIVELS EITHER SIDE OF ZERO ............. 90 DEGREES                                                           INFINITELY VARIABLE TABLE SPEED ................... 3" TO 150" IPM  TABLE PER REV. OF HANDWHEEL:                               SLOW ............................................ 0.1"   FAST ............................................ 1.5" DWELL AT EACH OR ALTERNATE TABLE REV. ............. 0 - 2-1/2 SEC. TABLE SWIVEL, SCALES FOR ANGULAR SETTING .......... 8-1/4 DEG. SCALES-TAPER PER FT. .............................. 3-1/2" (25%) AUTOMATIC CROSS FEED, REDUCTION IN DIAMETER OR   WORK AT EACH OR ALTERNATE REVERSALS ............. 0.0001" - .003" HAND FEED PER REV. OF HANDWHEEL:                          SLOW ............................................ 0.1"   FAST ............................................ 0.3"                                                        TAILSTOCK SPINDLE TAPER ........................... #7 JARNO TAILSTOCK SPINDLE TRAVEL .......................... 5/8"  APPROXIMATE WEIGHT ................................ 5,100 LBS                                                        MACHINE FEATURES:                                            HYDRAULIC TABLE TRAVERSE                                AUTO INFEED                                              ADJUSTABLE TABLE DWELL                                  RIGHT OR LEFT END WHEEL MOUNTING                        SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL         SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN         COMBINATION STRAIGHT AND TAPER GRINDING,               EXTERNAL OR INTERNAL    L.J. & R.H. GRINDING WHEEL COVERS                                DUAL DEAD/LIVE HEADSTOCK SPINDLE   TABLE MOUNTED DRESSER  SELF-CONTAINED COOLANT SYSTEM  3/60/220-440 VOLT MOTORS  EQUIPPED WITH:3-JAW CHUCKDRESSER                      UNIQUE TO BROWN & SHARPE GRINDERS FEATURE - DOUBLE SWIVEL WHEELHEAD: THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE EXTERNAL & INTERNAL  GRINDING SPINDLES CAN BE SWIVELED TO WITHER SIDE OF ZERO.  AN ADDITIONAL  SWIVEL THROUGH 90 DEGREES IS PROVIDED AT THE WHEEL SLIDE.  ANY COMPOUND  SETTING REQUIRED IN COMBINATION STRAIGHT & TAPER OR DOUBLE TAPER GRINDING,  O.D. OR I.D., CAN BE MADE QUICKLY & ACCURATELY. THE UNIVERSAL TURRET, WHICH SUPPORTS THE WHEEL SPINDLE HEAD, PROVIDES FURTHER  ADJUSTMENT FOR CHANGE OF WHEEL LOCATION.  THE TURRET SWIVELS ON THE WHEEL SLIDE,  AND CAN BE LOCKED IN ANY OF FOUR POSITIONS.  EACH CHANGE MOVES THE WHEEL 2".    RIGHT HAND WHEEL MOUNTING PROVIDES FOUR ADDITIONAL WHEEL POSITIONS.     AVAIAILABLE FOR PURCHASE WITH THIS MACHINE:  BROWN & SHARPE SWING DOWN I.D. ATTACHMENT WITH B & S I.D. SPINDLE.  PRICE FOR THIS ATTACHMENT CAN BE QUOTED, ITEM IS IN STOCK. P.O.R.                                                           ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE ** **  PURCHASED FROM QUALITY TOOLROOM  **        **  EXCELLENT CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
