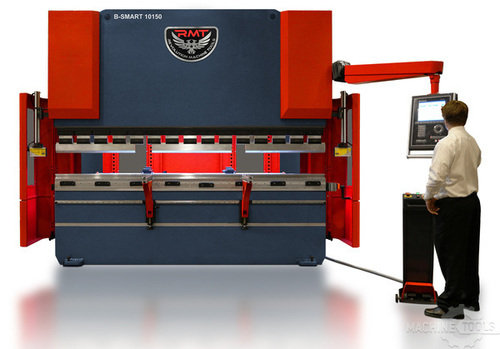

الصحافة الفراملREVOLUTION MACHINE TOOLS B-SMART
Utah, الولايات المتحدة الامريكيةنظرة عامة
علامة تجارية
موديل
بطاقة الهوية
367609
النوع
حالة
الجديد في المخزن
الموقع
Utah
الولايات المتحدة الامريكية
الولايات المتحدة الامريكية
MACHINE PRICING
Standard Configuration (Y1, Y2 / X)
Y1,Y2 Closed Loop Ram Positioning - Included
Delem DA52 Windows Based Control - Included
CNC Controlled X Axis Back Gauge - Included
Double guide rail backgauge system - Included
Manual Crowning Table - Included
Rear Work Light - Included
Front covers and rear guarding- Included
2 Sliding Front Sheet Supports with Linear Rail - Included
Hoerbiger Hydraulic System (Made in Germany) - Included
Dual Palm/Foot Station w/Selector Switch - Included
Adjustable height suspension control unit arm - Included
Backgauge Options
CNC Controlled X/R Axis Back Gauge - Optional
Setup-Calibration-Training
Setup & Training - Included
Tooling & Tool Clamping
RMT Common Precision Ground, 3.78” Tall Full Length Segmented
American Goose Neck Punch - Included
Euro/American Style Section Clamps with localized height adj.
max load 30 Tons per foot - Included
RMT 4 Way Die (2.36” Square) with 4V Die 85° with 5/8”, 7/8”, 1-3/8” , 2” Openings - Included
Operational Safeguarding
AKAS Manual Safety Laser-
Included
COMPLETE OPTIONS LIST AVAILABLE UPON REQUEST
For More Information:
https://www.rmtus.com/shop/product/b-smart-series
تحويل المواصفات للمتري
حمولة | 150 t |
نوع | HYD |
الطول الكلي | 10' |
بين مساكن | 8' |
المشوار | 11" |
أكسات | 3 |
الأبعاد | HxLxW= 112"x157"x69" |
الوزن | 24,030 Lbs |
CNC تحكم | CNC (Delem DA52) |
ورقة المواصفات
Overall Bending Length (A) 10’ 2”
Distance Between Sideframes (B)8’6”
Stroke (C)11”
Daylight (D) 20.9”
Throat Depth (E) 16.5”
Table Height (F) 35.6”
Table Width (G1) 4”
Overall Height (H) 112”
Overall Length (L) 157”
Overall Width (W) 69”
Approximate Weight 24,030 Lbs
Oil Capacity 37 Gal
Main Motor 20 HP
Full Load Amps 60/30 (230/460V 3 phase)
SPECIFICATIONS
Capacity Length x Tons 10’x150 Tons
Ram Repeatability ± 0.0004"
Programmable Ram Tilt - Yes
Programmable Ram Approach Speed (Min-Max)76-378 IPM
Programmable Ram Working Speed (Min-Max) .1-24 IPM
Programmable Ram Returm Speed (Min-Max) 57-283 IPM
X Axis Back Gauge Speed (Min-Max) 5-1890 IPM
X Axis Back Gauge Travel (Front to Back)32.3”
Optional – R Axis Back Gauge Speed (Min-Max) 5-378 IPM
Optional – R Axis Back Gauge Travel (Height) 10.2”
