ALMCO S2-30ماكينات تنظيف

بطاقة الهوية
367924
علامة تجارية
موديل
الموقع
Illinois
الولايات المتحدة الامريكية
رقم المخزن
39041
39041
صور ( 9 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على ALMCO S2-30 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
367924
علامة تجارية
موديل
الموقع
Illinois
الولايات المتحدة الامريكية
رقم المخزن
39041

الوصف

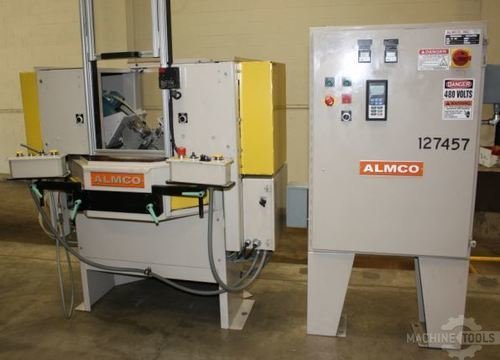

No. S2-30,Almco Spindle Deburring,2-Spdl,30"Slurry Tub,2.5" Max. Part Diam.'09

المواصفات

Serial No. 070808 New - 2009
From the Almco Website (www.almco.com)
The Spindle Series machines are the perfect solution for precision finishing
and de-burring of complex or high value parts up to 480 Pieces per hour. This
compact, easy to use machine was custom designed by our engineers to provide
fast, precise finishing of small gears and machined parts up to 2.5" in
diameter and 3" long.
Features:
- Compact Design- 55" wide x 38" deep.
- High Production Capacity- Up to 480 pieces per hour.
- Consistent, uniform, no-contact finishing.
- Fast and easy loading and unloading of parts.
- Controlled radii of .0001" to .015" or more, as required.
- Improves all micro-inch surfaces.
- Easily automated with robotics
- Exact repeatability of process for every part.
- Returns to exact load/ unload position every time.
SPECIFICATIONS:
Part Capacity.......................................2-1/2" Diameter x 3" Long
Number of Spindles..........................................................2
Spindle Speed..........................................................35 RPM
Spindle Drive..........................................................1/4 HP
Tub Size...........................................30" Diameter x 6-1/4" Deep
Tub Speed - Variable............................700 - 2,000 Surface Feet/Min.
Tub Drive................................................................5 HP
Electrical System...............................................460V/60Hz/3Ph
Services Required...........................................80 PSI Air, Water
Water Filtration System............................................Almco ST-4
Dimensions - actual - Tub........................55"(L-R) x 38"(F-B) x 76"(H)
Dimensions - actual - Electrical Cabinet.........42"(L-R) x 12"(F-B) x 61"(H)
Dimensions - actual - Water Filtration System..............68" x 25" x 53"(H)
Weight - approximate...............................................3,500 Lbs.
EQUIPPED WITH:
Almco ST-4 Water Filtration System (Serial No. 100804)
Sliding Door Sound Hood and Safety Package
Variable Speed Tub
Dual Process Timers (Left & Right Spindle)
Work Light
Installation, Operation, and Service Manual
*Catalog Specifications Subject to Verification
