KERN 44مراكز التجهيز العمودي

بطاقة الهوية
368334
علامة تجارية
موديل
44
حالة
تستخدم - ممتاز
السنة
2010
الموقع
Connecticut
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
2988
2988
صور ( 7 )
بطاقة الهوية
368334
علامة تجارية
موديل
44
حالة
تستخدم - ممتاز
السنة
2010
الموقع
Connecticut
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
2988

الوصف

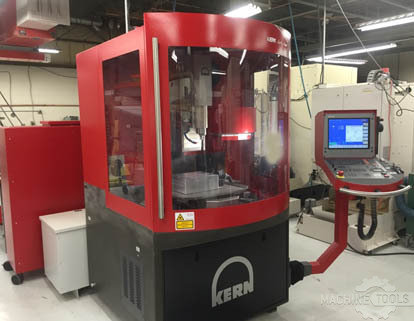

Ultraprecision Micro CNC Machining Center Working ranges X 300, Y 280, Z 250 mm Feed Rate 0.01 - 16,000 mm/min Heidenhain iTNC 530 smarT.NC 3-axes contouring control including Ethernet interface for direct communication with existing networks Portable, electronic handwheel for Heidenhain controuring Control Electropneumatic 32-fold tool changer Digital direct feed drives Power requirements: 208V (transformer included) High frequency spindle SF 5---50.000 rpm vector-controlled Ø 80 mm Speed range 500 - 50,000 rpm, infinitely variable Rigid tapping Tool length (tool holder included) Max: 155 mm Spindle coolant system Blum Laser measuring system Split transformer 3 x 190-208-220-240 V, 50/60Hz Workpiece touch probe with infrared data transfer Approx. 25 toolholders HSKE25/D - and assorted D14 collets All Related Manuals Coolant tank & Pump

المواصفات

Ultraprecision Micro CNC Machining Center
Working ranges X 300, Y 280, Z 250 mm
Feed Rate 0.01 - 16,000 mm/min
Heidenhain iTNC 530 smarT.NC
3-axes contouring control including Ethernet interface for very
direct communication with existing networks
Portable, electronic handwheel for Heidenhain controuring Control
Electropneumatic 32-fold tool changer
Digital direct feed drives
Power requirements: 208V (transformer included)
High frequency spindle SF 5---50.000 rpm vector-controlled
Ø 80 mm
Speed range 500 - 50,000 rpm, infinitely variable
Rigid tapping
Tool length (tool holder included) Max: 155 mm
Spindle coolant system
Blum Laser measuring system
Split transformer 3 x 190-208-220-240 V, 50/60Hz
Workpiece touch probe with infrared data transfer
Approx. 25 toolholders HSKE25/D - and
assorted D14 collets
All Related Manuals
Coolant tank & Pump
