LODGE & SHIPLEY 2CT40-ABالمقص التربع الطاقة (مقياس)

بطاقة الهوية
370324
علامة تجارية
موديل
حالة
تستخدم - ممتاز
السنة
1975
الموقع
Massachusetts
الولايات المتحدة الامريكية
رقم المخزن
2041

الوصف

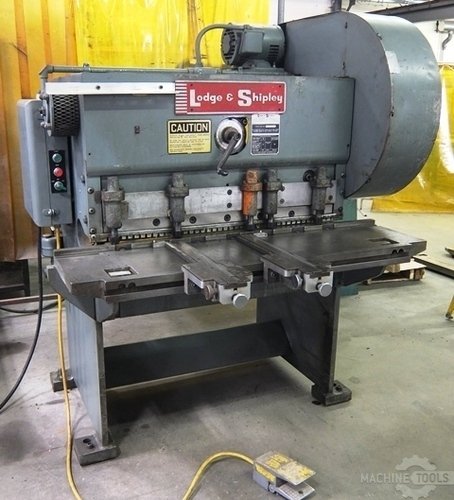

Lodge & Shipley 12ga. x 40" Model 2CT40-AB Accra-Blank Mechanical Power Shear. With (2) 18" Front Vernier Pin Gauges, 24" FOMBG, (5) Adjustable Mechanical Hold-downs, Finger Guard, 1.5Hp/3/60/230/460 Motor (on 230), 4-Sided Blades, 1-Shot Bijur Lube System, Foot Pedal, Front-return Chute, New 1975. http://www.agreenco.com/Lodge&Shipley2CT40AB-2041.html

المواصفات

تحويل المواصفات للمتري
مقياس ماكس
12 ga
طول بليد
40.5 "
HYD / الميكانيكية
Mech
مقياس خلفى
24 "
القدرة
1.5 hp
SPM
120 spm
الأبعاد
65"W x 50"D x 71"H
الوزن
3,250 lb.

1-(used) Lodge & Shipley 40" x 12ga. Model 2CT40-AB Accra-Blank Mechanical Power Shear, new 1975.

SPECIFICATIONS:
Capacity;
Mild steel.......................................... 12ga. x 40"
302 Stainless...................................... 0.081" x 40"
2024-T23 Aluminum.................................. 0.144" x 40"
Pure copper........................................ 0.154" x 40"
Monel.............................................. 0.085" x 40"
Distance between housings................................. 42-3/4"
Blade size................................ 3/4" x 2-1/2" x 40-1/2"
Blade rake per foot.......................................... 1/4"
Throat depth.............................................. 10-1/4"
Floor to top of table......................................... 36"
Speed..................................................... 120 spm
Motor.......................................... 1.5Hp/3/60/230/460
Dimensions..................................... 65"W x 50"D x 71"H
Weight (approx.)........................................ 3,250 lb.

EQUIPPED WITH:
24" Front operated manual back gauge
with indicator graduated in .005"
(2) 18" Front vernier pin gauges
Ram adjustment for notching and slitting
Adjustable table for variable blade clearance
4-Sided blades
(5) Adjustable mechanical hold-downs
Finger guard
Foot pedal
One-Off-Run operation switch
Belt/flywheel guard
Front return chute
Bijur 1-shot lube

http://www.agreenco.com/Lodge&Shipley2CT40AB-2041.html
