HARDINGE HLV-H-EMمخارط الدقة

بطاقة الهوية
372010
علامة تجارية
موديل
حالة
مستعملة - جيد
الموقع
Pennsylvania
الولايات المتحدة الامريكية
رقم المخزن
15190
الثمن
15190
صور ( 9 )
بطاقة الهوية
372010
علامة تجارية
موديل
حالة
مستعملة - جيد
الموقع
Pennsylvania
الولايات المتحدة الامريكية
رقم المخزن
15190
الثمن

المواصفات

تحويل المواصفات للمتري
الأرجحة
11 "
المراكز
18 "
القلوظة
in/mm
القدرة
1 hp
RPM
125

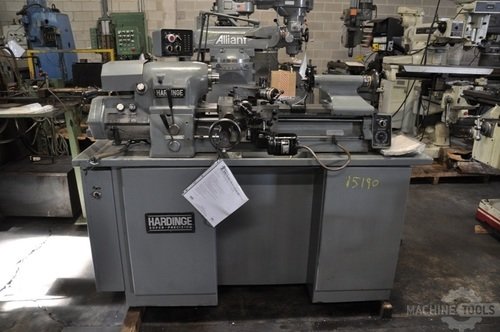

HARDINGE HLV-H-EM PRECISION TOOL ROOM LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $23,500.00

Stock # 15190
Serial # HLV-H-7704-T
Model: HLV-H-EM
Mfg. Date: 1978

New Drive Belts & New Spindle Bearings Sept. 2017

Swing Over the Bed: 11"
Swing Over the Carriage: 9"
Swing Over the Cross Slide: 6"
Distance Between Centers: 18"
Variable Spindle Speeds: 125 to 3000 RPM Via 2-Speed Motor
Spindle Nose is Hardinge Taper & 5C Internal Taper
Spindle Hole: 1-1/4"
5C Collet Capacity: 1-1/16" Round, 7/8" Hex, 3/4" Square
Cross Slide Travel: 5-1/2"
Compound Slide Travel: 3"
Variable Carriage Power Feed: 5/16 to 7 IPM
Variable Cross Slide Power Feed: 3/16 to 4 IPM
(27) Inch Threading Leads: 11 to 108 TPI
Metric Threading, Pitches Per MM: .275 to 2.7
Tailstock Quill Diameter: 1-3/8" with 3-3/4" Travel & #2 MT

EQUIPPED WITH:
Lever Type Collet Closer with (58) 5C Assorted Round Collets
5" Hardinge 3-Jaw Chuck
5" Hardinge 4-Jaw Chuck
7" and 9" Hardinge Face Plates
(2) Hardinge 4" Drive Plates
Spindle Nose Guard
Variable power Feeds to Z & Y
All Dials Have Inch & Metric Graduations
Machine Work Light
3" Plain Steady Rest
(2) Live Centers
(1) Jacobs Drill Chuck
(1) End Quadrant Gear Unit with 55 & 60 Tooth Gears English
(1) End Quadrant Gear Unit with 55 & 60 Tooth Gears Metric
Dorian D25AXA Quick Change Tool Post with (3) Tool Holders
(2) AXA2 and (1) AXA175
(2) Adjustable Carriage Feed Stops
1 HP Main Motor
1/6 HP Coolant Pump, 230-460
Wired for 3 Phase, 60 Hz, 460 Volts ONLY

Overall Dimensions: 70" L x 34" W x 58" H
