WEBSTER & BENNETT 36 Rعمودي مملة ميلز (incld VTL)

بطاقة الهوية
374343
علامة تجارية
موديل
السنة
1981
الموقع
Ohio
الولايات المتحدة الامريكية
رقم المخزن
10290

الوصف

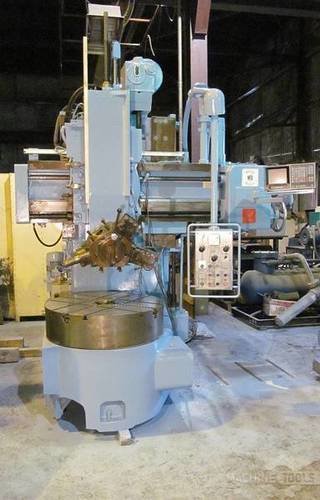

36" WEBSTER BENNETT VERTICAL BORING MILL MODEL: R NEW: 1981, Prime adjustable rail vertical lathe perfect for aerospace work, motor repair, pump repair, turbine & oil and gas work. This 36" Webster Bennett is available for immediate purchase and by all indication may be put into service right away. This piece is located in our Bedford Ohio facility and is scheduled for a full sand to casting, prime and paint. as well as a preventative maintenance review and runoff in preparation to be put under power for demonstration.

المواصفات

تحويل المواصفات للمتري
قطر المنضدة
36 "
الأرجحة
46 "
ارتفاع الشغل U/R
47.5 "
القدرة
40 hp
RPM
167 rpm
الأبعاد
92" x 110" x 126"
الوزن
20,200

ONE (1) USED
36" WEBSTER BENNETT VERTICAL BORING MILL

MODEL: R
NEW: 1981
S/N: 7194-4

SPECIFICATIONS:
CHUCK DIAMETER..................... 36"
MAXIMUM SWING...................... 46"
MAX. HEIGHT BENEATH TURRET......... 47.5"
MAX. HEIGHT BENEATH CROSS RAIL..... 40"
MIN. HEIGHT BETWEEN CROSS RAIL..... 19"
VERTICAL TRAVEL OF TURRET SLIDE.... 34"
MAX. HORIZONTAL TRAVERSE OF TURRET
TABLE CENTRE OUTWARDS............. 28"
APPROX. FLOORSPACE REQUIRED........ 88" W x 120" F-B
TOTAL WORKING HEIGHT REQUIRED...... 143"
APPROX. MACHINE WEIGHT............. 20200 LBS
TABLE SPEEDS (12).................. 7.5 - 167
FEEDS (12)......................... 0.004 - 0.200 IPR MAIN MOTOR......................... 40 HP
APPROX. SHIPPING DIMENSIONS:
MACHINE............................ 92" W X 110" F-B X 126" H
ELECTRICAL CABINETS................ 3' X 3' X 6'
COOLANT PAN........................ 5' X 104" X 12"

EQUIPPED WITH:

ACCURITE TURNVISION Digital Readout System
MISC. TOOLHOLDERS
SET OF (4) CHUCK JAWS
COOLANT PAN, PUMP & GUARDING
FULL PENDANT CONTROL
TIMKEN BEARING TABLE
ALL AVAILABLE DOCUMENTATION & MANUALS

SPECIFICATIONS SUBJECT TO VERIFICATION
