HARDINGE CHNC-Iمخارط CNC
الوصف
المواصفات

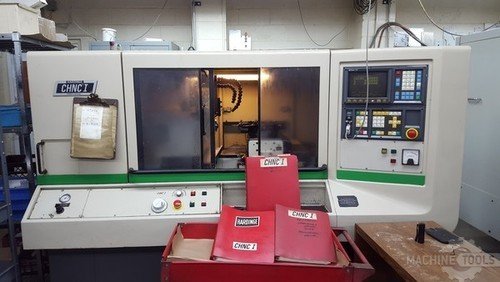

1992 Hardinge CHNC I
CNC Chucker & Bar Machine
Specifications:
Control……………...............General Numeric (Fanuc OT 32 bit) CNC Control
Max Swing Over Bed…………….............................................................…...14"
Max Turning Diameter………….................................................................…...8"
Spindle Speeds…………………...........................................…..50 - 5,000 RPM
Spindle Drive……………..................................................................…….10 HP
Spindle Nose……………..........................................................……...16C Collet
Hole Thru Spindle……………..............................................................…..1.875"
Hole Thru Draw Tube……….........................................................……….1.625"
Turret Capacity……………................................................…………..8 Positions
Turret Travels (X,Z)………….....................................................……...4.5" x 14"
Rapid Traverse Rate (X/Z)………............................................………...200 IPM
Equipped With:
Vertical slide
Macro programming
Canned cycles
Manuals
