UNISON 288-0000المطاحن الامركزية

بطاقة الهوية
379287
علامة تجارية
موديل
السنة
1984
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
151810

الوصف

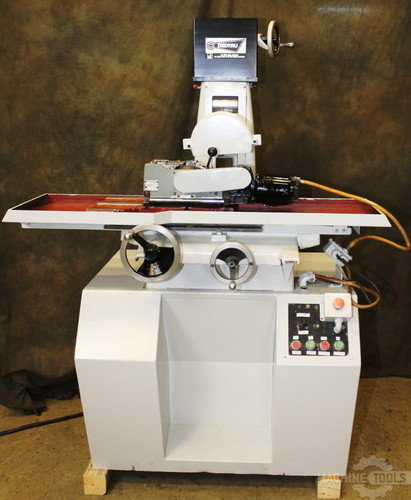

5" Dia. Cap 3hp Motor HP Unison-Dedtru 288-0000 CENTERLESS GRINDER, HARIG 618 BASE, UNISON DEDTRU MODEL C4

المواصفات

تحويل المواصفات للمتري
سعة الشغل
4 "
قطر عجلة التجليخ
6 "
قطر عجلة التنظيم
4 "
قدرة RW
18 hp

UNISON "DEDTRU" CENTERLESS GRINDER              MODEL: 288-0000S/N: 6021 C4 3176NEW: 1985                                                                          VERTICAL WORKING HEIGHT (CENTER OF SPINDLE ABOVE)         REGULATING ROLL ................................. 10"   CROSS FEED TRAVEL ................................ 6-3/4"  LONGITUDINAL TRAVEL .............................. 18"  TABLE SIZE ....................................... 6" X 18"  WORKPIECE SIZE:                                           O.D. WORK WITH BASIC EQUIPMENT .................. 1/4" TO 1-1/4"    O.D. WORK W/STD. OPTIONAL ACCESSORIES ........... 0.031" TO 4"    I.D. WORK - MAXIMUM O.D. ........................ 5"   MAXIMUM WHEEL DIAMETER ........................... 8"  MAXIMUM WHEEL LENGTH ............................. 3"  APPROXIMATE MACHINE WEIGHT ....................... 1,500 LBS                                                           EQUIPPED WITH:                                               UNISON MODEL "C4" DED-TRU CENTERLESS GRINDING UNIT      S/N: 3176          -DESIGNED TO DO THROUGH FEED, O.D., I.D. AND              SECOND OPERATIONS.    REGULATING ROLL WITH ITS OWN SELF-CONTAINED DC             DRIVE CONTROLLER. REGULATING ROLL SIZE 4" X 4"        HARIG #618W SURFACE GRINDER BASE           3 H.P. "POPE" 3/60/230-460 VOLT SUPER-PRECISION DIRECT DRIVE SPINDLE    UNISON DESIGNED/SUPPLIED WITH HOLE THROUGH COLUMN FOR LONGER PARTS       "GRAYMILLS" EXTERNAL COOLANT TANK & PUMP     MACHINE IS WIRED FOR 3/60/230 VOLTS                                                               ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **** EXCELLENT CONDITION& APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
