GANESH GMV2مطاحن العمودي

بطاقة الهوية
379475
علامة تجارية
موديل
حالة
الجديد في المخزن
السنة
2018
الموقع
California
الولايات المتحدة الامريكية
الثمن

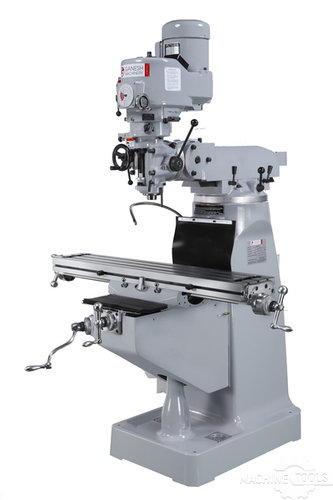

Manual knee mill
صور ( 3 )

التنزيلات

GANESH GMV2 (3 MB )

بطاقة الهوية
379475
علامة تجارية
موديل
حالة
الجديد في المخزن
السنة
2018
الموقع
California
الولايات المتحدة الامريكية
الثمن

الوصف

Ganesh GMV-2F Precision Manual Knee Milling Machine 9"X50" Table 60 – 4500 RPM Spindle Speeds Machine Features: Multiple knee and table locks for superior rigidity T-slots ground to 5/8” for an accurate reference edge - fits standard workholding T-nuts One-Shot Metered Central Lubrication System for slideways and lead screws Spring Loaded roller type way cover is included for added safety and protection of machine column Built-in coolant pump Chip-Tray is included Water resistant halogen lamp is included Cast-in leveling ledge for ease in leveling Inspection Report on accuracy, Instruction Manual, Tools and Tool Box all included Large compliment of parts and accessories in stock to ensure continued operation

المواصفات

تحويل المواصفات للمتري
الجدول-W
9 "
الجدول-L
50 "
مجال الحركة الطولية
38 "
مجال الحركة القطعية
12 "
القدرة
3 hp
RPM
60 rpm
انحناء
R-8
الوزن
2800 lbs

TABLE –
Table Size: W x L 9” X 50” (230 X 1270mm)
T-slot Width / Quantity 5/8” / 3 on 2.5” centers
Table Load Capacity 400 pounds (200 kg)
Table Surface to Floor Dimension 32’ – 48” (820 -1226mm)
MACHINE TRAVELS & CAPACITY –
Table Travel – Longitudinal – X Axis 38” (966mm)
Table Travel with Power Feed 34.5”
Cross Travel – Y Axis 12” (305mm)
Vertical Knee Travel – Z Axis 16” (406mm)
Overarm (ram) Travel 12” (305mm)
Overarm Swivel 360°
Spindle Nose-to-Table Surface 0” – 18.5” (0 - 469mm)
Spindle Centerline to Column Face 6.75” – 18.75” (171 – 476mm)
Leadscrews with ground pitch surface (X & Y) 0. 200” per rev. (ballscrews optional)
Adjustable scale ring display resolution 0.001” (5mm)
Ways – X, Y, & Z Axes – Hard Chrome Plated Hardened & Ground Dovetail Ways
SPINDLE HEAD – Vari-Speed
Spindle Motor 3-HP, 3-Phase 208–240 vac
Spindle Taper (hardened & ground) R-8 (ISO NST 30-taper optional)
Spindle Runout 0.00008” maximum runout (0.002mm)
Spindle Bearings ABEC-7 matched set Class-7 bearings
Variable Speed Spindle 60 – 4,500 RPM
Head Tilt (Left-to-Right) 90° – 0 – 90°
Head Tilt (Front-to-Back / Up-Down) +45°– 0 – -38°
Head Swivel on Turret 360°
Quill –
Quill Diameter 3-3/8” (85.725mm)
Quill Travel – Manual & Power Feed 5” (127mm)
Quill feeds – With Trip Release - Inch 0.0015”, 0.003”, 0.006”
Quill feeds – With Trip Release - Metric 0.04mm, 0.08mm, 0.16mm
DIMENSIONS & WEIGHT –
Machine Weight 2,222 lbs. (1010 Kgs)
Electrical Requirements - 208 – 240 vac, 3-Ph., 60 Hz., 9.5-amps
