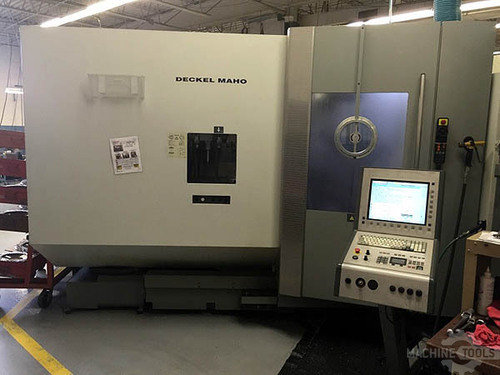

DECKEL MAHO DMC 60Tمراكز تصنيع عالمية

صور ( 9 )

علامة تجارية
موديل
بطاقة الهوية
380635
حالة
تستخدم - ممتاز
الموقع
Connecticut
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
3000
بطاقة الهوية
380635
علامة تجارية
موديل
حالة
تستخدم - ممتاز
الموقع
Connecticut
الولايات المتحدة الامريكية
عودة السياسة
كما هو
رقم المخزن
3000

الوصف

Each Machine has the following 5 Axis Pallet Size 24.8" Travel: X-Axis 30.7" Travel: Y-Axis 22" Travel: Z-Axis 22" Spindle Motor 37.5 / 25 HP Spindle Speed 18,000 RPM Spindle Taper HSK-63A Tools 180 Table Load Capacity 881 lbs. Rapid Traverse Rates 1181 IPM Tool Change Time (C - C) 5.5 Seconds Machine Weight 18,739 lbs. HEIDENHAIN MILL PLUS CNC CONTROL (2) Machine 5-Axis System with (20) Pallets Pallet size each one 20" FtoB x 25" LtoR 15" Color TFT Five Axis Built-In Rotary / Tilt Head Fastems Palletech (20) Pallets Dual Level (1) Load Station Coolant Thru Spindle (2000 psi) High Pressure Coolant (2) 180 Tool Magazine Blum Laser Tool Measurement System (Touch & Tool Probes) Visiport Window Remote Manual Pulse Generator Mist Collectors Microfine Filtration Paper System (300 Gallon) Chip Conveyor (Rear Exit) Coolant Wash System Chip Auger Approximately 600 tool holders As of March 4, 2016 01273 has Power on 79,180 approx Machining 29,621 mach #2 01233 has Power on hours 83,206 approx. Machining hours 33,167 mach #1

المواصفات

تحويل المواصفات للمتري
X
30.71 "
Y
22.05 "
Z
22.05 "
الأكسات#
5
RPM
24000 rpm
# ATC
120
الجدول-W
19.7 "
الجدول-L
24.82 "
انحناء
HSK-63A
CNC تحكم
CNC (HEIDENHAIN ITNC 530)

Each Machine has the following
MUST SEE
5 Axis
Pallet Size 24.8"
Travel: X-Axis 30.7"
Travel: Y-Axis 22"
Travel: Z-Axis 22"

Spindle Motor 37.5 / 25 HP
Spindle Speed 18,000 RPM
Spindle Taper HSK-63A
Tools 180
Table Load Capacity 881 lbs.
Rapid Traverse Rates 1181 IPM
Tool Change Time (C - C) 5.5 Seconds
Machine Weight 18,739 lbs.
HEIDENHAIN MILL PLUS CNC CONTROL
(2) Machine 5-Axis System with (20) Pallets
Pallet size each one 20" FtoB x 25" LtoR
15" Color TFT
Five Axis Built-In Rotary / Tilt Head
Fastems Palletech (20) Pallets Dual Level
(1) Load Station
Coolant Thru Spindle (2000 psi)
High Pressure Coolant
(2) 180 Tool Magazine
Blum Laser Tool Measurement System (Touch & Tool Probes)
Visiport Window
Remote Manual Pulse Generator
Mist Collectors
Microfine Filtration Paper System (300 Gallon)
Chip Conveyor (Rear Exit)
Coolant Wash System
Chip Auger
Approximately 600 tool holders

As of March 4, 2016 01273 has Power on 79,180 approx
Machining 29,621 mach #2
01233 has Power on hours 83,206 approx.
Machining hours 33,167 mach #1
