LODGE & SHIPLEY PFT40مخارط المحرك

بطاقة الهوية
382578
علامة تجارية
موديل
PFT40
حالة
مستعملة - جيد
الموقع
Pennsylvania
الولايات المتحدة الامريكية
رقم المخزن
16027
الثمن
16027
صور ( 10 )
بطاقة الهوية
382578
علامة تجارية
موديل
PFT40
حالة
مستعملة - جيد
الموقع
Pennsylvania
الولايات المتحدة الامريكية
رقم المخزن
16027
الثمن

المواصفات

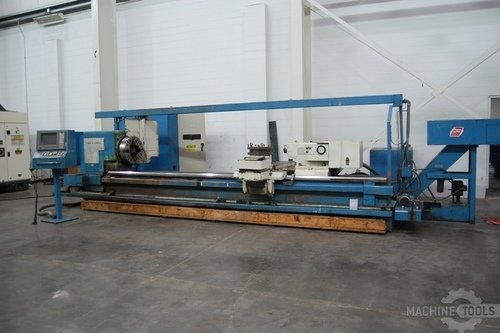

40" X 168" LODGE & SHIPLEY BIG HOLE CNC LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $39,500.00

HMC Stock # 16027-C
Machine Serial No. 49813
Machine Model No. PFT40
New Date: Unknown

Machine was Retrofit in 1998 with Fanuc 18TB CNC Control
Swing Over Ways: 40"
Swing Over Cross Slide: 23"
12-1/2" Diameter Spindle Bore
Spindle Speeds 25 to 650 RPM in (3) Geared Ranges
RPM Maximums By Ranges: 146 Low, 282 Medium, 650 High
Feed Range: 0 to 9.999Inches PerMinute Via Fanuc Servo Drive
Interchangeable Turrets on Cross Slide: (1) 12-1/2" Square Turret,
(1) 6-Position Turret & (1) Large Boring Bar Holder for a 6"
Diameter Boring Bar
Tailstock with 6" Diameter Quill, Hydraulic Travel to Quill
Tailstock is Towed/Pushed by Carriage, Live Bearings in Quill for
Interchangeable Tools Bolted to End of Quill
Ball Screw Driven Carriage & Cross Slide
(2) 24" Diameter Manual 4-Jaw Chucks with Hard Reversible Top Jaws
Full Length Jorgensen Chip Conveyor with Coolant Pump
14" Diameter Roller Steady Rest
2-Position Roller Support Rest
Spare Ball Screw for Carriage Travel
Chip/Splash Guards
30 KW Spindle Drive Motor, 3/60/230V
1 HP Hydraulic Pump Motor, 3/60/208-230-460V
75 KVA Transformer to Run the Machine on 440V

Overall Machine Assembled to Run: 31' L x 10' W x 90" H
Shipping Dimensions:
Main Machine: 24' L x 7' W x 87" H x Approx. 22,000 Lbs.
Chip Conveyor & Coolant System: 25' L x 40" W x 68" H
Electrical Cabinet: 6' L x 22" W x 90" H
Operator Control Console: 22" x 32" x 67" H
Main Motor on Mounting Base: 3' x 3' x 3'
Transformer: 28" x 23" x 30" H
Misc. Guarding: 10' x 6' W x 44" H
Misc. Guarding: 6' x 6' x 3'
