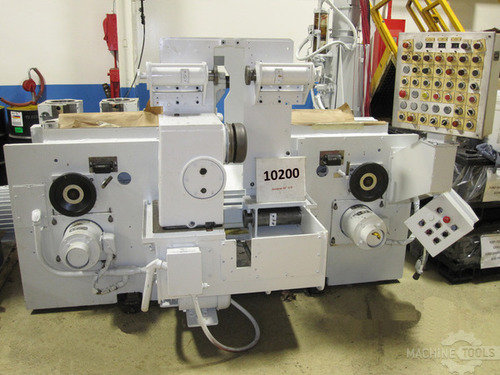

ROTARY -Rotary Carrier fixture mounted on the front knee C & B Machinery has two of these grinders in stock, one is available as-is, the other has been partially refurbished. Rotary double disc grinders are excellent for producing quality parts at high volumes. Many different types of parts can be ground on a rotary double disc including pinion gears, connecting rods, knife blades, heel jaws, spacers, etc. The rotary carrier can either be hand loaded or robot loaded, then parts are moved into the grind zone, ground to size, then exit via an exit chute. C&B can quote to re-engineer this grinder to meet customer specifications.
تحويل المواصفات للمتري
|قطر عجلة التجليخ||30"|
|الأبعاد||114" x 146"|
ROTARY -Rotary Carrier fixture mounted on the front knee Abrasive O.D. 30” Spindle drive motors: (40HP 220/440 3ph, 60hz) currently wired for 440 volt Machine mounted operator’s pushbutton station Power operated rapid traverse and pushbutton controlled compensating infeed units Power operated radial arm dresser (2) Abrasive steel mounting plates Coolant through spindles for connection to a central system Trabon grease lube system Two-door electrical panel with Modicon 484 controller and J474 slave communication Rear sump tank
