KENT INTERNATIONAL CO., LTD. KMV-22Pالعملاقة الآلات مراكز (incld. بريدج وعمود مزدوج)

بطاقة الهوية
387224
علامة تجارية
KENT INTERNATIONAL CO., LTD.
موديل
KMV-22P
حالة
الجديد في المخزن
السنة
2017
الموقع
Illinois
الولايات المتحدة الامريكية
رقم المخزن
KMV22P-0116

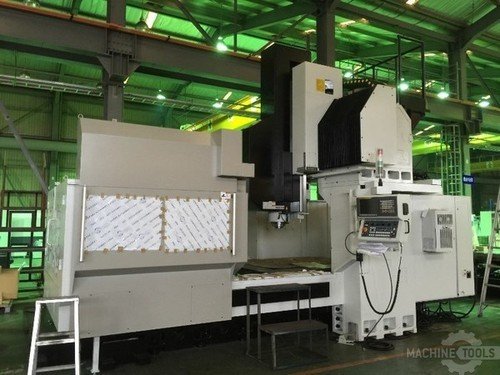

Kmv 22p 037 vb 2
صور ( 3 )
بطاقة الهوية
387224
علامة تجارية
KENT INTERNATIONAL CO., LTD.
موديل
KMV-22P
حالة
الجديد في المخزن
السنة
2017
الموقع
Illinois
الولايات المتحدة الامريكية
رقم المخزن
KMV22P-0116

الوصف

Kent, KMV-22/VB-2 meters CNC bridge-center, 87 x 79 x 35+8", 35HP, 6000rpm, 2-spdgear, 32atc, CT-50, CTS-300PSI, CC, coolant filtration, Fanuc-0iMD, 200mm riser, Stock in Chicago-2016 1) Kent Industrial KMV-22P w/ Fanuc 0i-MD CNC Control $ with all std features as defined above, travels 87” X, 79” Y, 35” Z + 8” SN-2010037 Packaged Factory Machine Features & Options: 1) 35Hp, 6,000 rpm, ZF gearbox spindle drive with CTS 1) 32 Position Tool Changer 1) 300psi CTS (Coolant Thru Spindle) (20bar) (Prep for 1000PSI) 1) 8” Column Riser blocks (9.44 - 44.9” Z axis travel) 1) Twin Auger Type Chip Conveyors feeding a Belt type conveyor 1) Oil Chilled Ball-screws (X, Y & Z axes) 1) 4th Axis Cable pre-wiring 1) Safety interlock system for 3 access doors 1) Air Conditioned electrical cabinet 6) Spare M-codes with M-fins (1pr std, 2 additional 1) Spare parts kit 1) Programmable Air-blast 1) Air Thru Spindle 1) CTS Backsplash Shield Fanuc Control, Features & Options 1) Manual Guide-I w/10.4” LCD 1) Jerk Control 1) Fanuc Manual Guide-i (graphic, shop floor programming system) 1) Fanuc 1 GB Data Server and Fast Ethernet communications 1) Custom Macro B 1) High Speed Skip Function 1) Helical Interpolation 1) Tool Length Measurement 1) Tool Life Measurement 1) AICC-II 1) Program Restart Function Sub-Total for above KMV-22P double column machine and options FOB Illinois Warehouse

المواصفات

تحويل المواصفات للمتري
X
87 "
Y
79 "
Z
35.43 "
القدرة
35 hp
RPM
6000 rpm
الجدول-W
65 "
الجدول-L
87 "
# ATC
32
انحناء
CT-50
الأبعاد
243" x 171" x 178
الوزن
71500
CNC تحكم
CNC (Fanuc 0i-MD)

1) Kent Industrial KMV-22P w/ Fanuc 0i-MD CNC Control $
with all std features as defined above, travels 87” X, 79” Y, 35” Z + 8” SN-2010037
Packaged Factory Machine Features & Options:
1) 35Hp, 6,000 rpm, ZF gearbox spindle drive with CTS
1) 32 Position Tool Changer
1) 300psi CTS (Coolant Thru Spindle) (20bar) (Prep for 1000PSI)
1) 8” Column Riser blocks (9.44 - 44.9” Z axis travel)
1) Twin Auger Type Chip Conveyors feeding a Belt type conveyor
1) Oil Chilled Ball-screws (X, Y & Z axes)
1) 4th Axis Cable pre-wiring
1) Safety interlock system for 3 access doors
1) Air Conditioned electrical cabinet
6) Spare M-codes with M-fins (1pr std, 2 additional
1) Spare parts kit
1) Programmable Air-blast
1) Air Thru Spindle
1) CTS Backsplash Shield
Fanuc Control, Features & Options
1) Manual Guide-I w/10.4” LCD
1) Jerk Control
1) Fanuc Manual Guide-i (graphic, shop floor programming system)
1) Fanuc 1 GB Data Server and Fast Ethernet communications
1) Custom Macro B
1) High Speed Skip Function
1) Helical Interpolation
1) Tool Length Measurement
1) Tool Life Measurement
1) AICC-II
1) Program Restart Function
Sub-Total for above KMV-22P double column machine and options
FOB 12 week delivery
