SAMSUNG SL 25ASYمخارط CNC

بطاقة الهوية
389490
علامة تجارية
موديل
النوع
حالة
تستخدم - ممتاز
السنة
2013
الموقع
Illinois
الولايات المتحدة الامريكية
رقم المخزن
Unit #2

الوصف

2013 Samsung SL25ASY Live Tool Turning Center With Sub-Spindle and "Y" Axis. Machine is in excellent condition and can be viewed under power as needed. Machine includes: Fanuc control, tool presetter, chip conveyor, Edge Servo Rebel 65 bar loader, C Axis, sub-spindle, "Y" axis, 2) "Z" axis live toolholders, and 2) "X" axis live toolholders. Please contact: Bob Nelson at 847-921-3845, Brian Foerster at 847-800-4494, or Cris Mulvihill at 602-501-8995 with any and all questions.

المواصفات

تحويل المواصفات للمتري
حجم الظرف
8 "
سعة العامود
1.42 "
أكسات
4
القدرة
10 hp
ماكس RPM
4000 rpm
الأرجحة
25.59 "
الأبعاد
188x76"
الوزن
12,800 lbs
CNC تحكم
CNC (Fanuc 0i-TD)

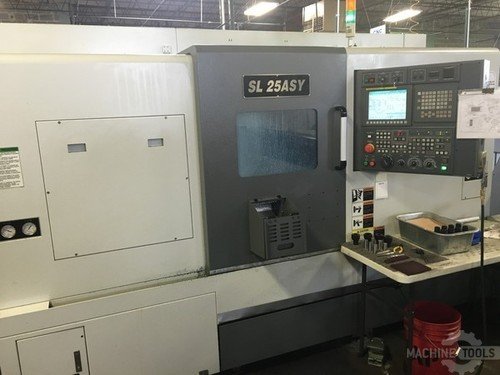

2013 Samsung SL25ASY
Live Tool Turning Center with Y Axis
_____________________________________________________________________

Specifications:
SWING OVER BED………………………………………………….....25.59"
SWING OVER CROSS SLIDE……………………………………….. 21.26"
MAIN CHUCK………………………………………...…………8" ( 3 JAW )
MAIN SPINDLE NOSE………………………………………………….A2-6
MAIN SPINDLE MOTOR………………………………………….15/20 HP
MAIN SPINDLE SPEED…………………………………………4,000 RPM
MAIN SPINDLE BAR CAPACITY……………………………………….2.6"
SUB SPINDLE CHUCK………………………………………...6" ( 3-JAW )
SUB SPINDLE NOSE………………………………………………….. A2-5
SUB SPINDLE MOTO…………………………………………….7.5/10 HP
SUB SPINDLE SPEED…………………………………………...6,000 RPM
SUB SPINDLE BAR CAPACITY....…………………………………….1.42"
X-AXIS TRAVE…………………………………………………………9.25"
Y-AXIS TRAVEL………………………………………………………..3.94"
Z-AXIS TRAVEL……………………………………………………….22.83"
RAPID TRAVERSE (X/Y/Z) ……………………………...709/472/945 IPM
TOOL CAPACITY……………………………………………...12 STATION
LIVE TOOL SPEED……………………………………………....5,000 RPM
LIVE TOOL MOTOR………………………………………………….7.5 HP
Equipped With:
FANUC 0iT-D CNC CONTROL
TOOL PRESETTER
CHIP CONVEYOR
EDGE SERVO REBEL 65 SHORT BAR LOADER
C-AXIS
SUB-SPINDLE
ALL AVAILABLE MANUALS
(2) Z-Axis Live Tool Holders and (2) X-Axis Live Tool Holders Included
