برشمةNATIONAL RIVET 500 HILLARD CLUTCH
South Carolina, الولايات المتحدة الامريكيةنظرة عامة
علامة تجارية
موديل
500 HILLARD CLUTCH
بطاقة الهوية
390423
النوع
حالة
تستخدم - ممتاز
السنة
1984
رقم المسلسل
860
الموقع
South Carolina
الولايات المتحدة الامريكية
الولايات المتحدة الامريكية
رقم المخزن
UD100355
تحويل المواصفات للمتري
ماكس ضياء. من برشام | 0.156" |
الزور | 10" |
الأبعاد | 21" x 28" |
الوزن | 500 |
ورقة المواصفات

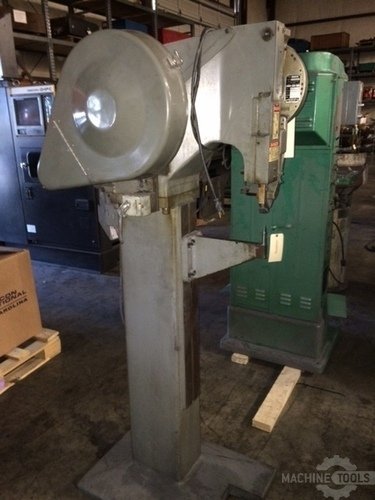

National Rivet Model 500 Rivet Setting Machine with Hilliard Clutch, S/N 860 (1984)
Specifications:
Rivet capacity .156" x .750”, Upset force 2,400 lbs, Throat depth 10”, Stroke 2-3/8”, Hopper Rotary, Cycle time 1/3 second, Power, electric ¼ HP,Electrics 115v, 60cy, 3 ph, Weight 425 lbs, Floor space 63-3/4”(h) x 21”(w) x 28”(d)
Tooled for:
Model 5, Head diameter .215, Hole thickness.042, Body diameter 128, Length 3/16” & ¼”, Jaws TJ 3100, Driver P96, Arm: 250-4-68, Anvil 2536A
Equipped with:
• Dual Palm Buttons
• Rotary Hopper
Note: This machine is tooled up to rivet .210 length rivet x .087" diameter x .145 head.
