ACB FEKD 200-400ماكينا تشكيل السترتش

بطاقة الهوية
394337
علامة تجارية
موديل
رقم المسلسل
88509
الموقع
Washington
الولايات المتحدة الامريكية
رقم المخزن
20115-IS

الوصف

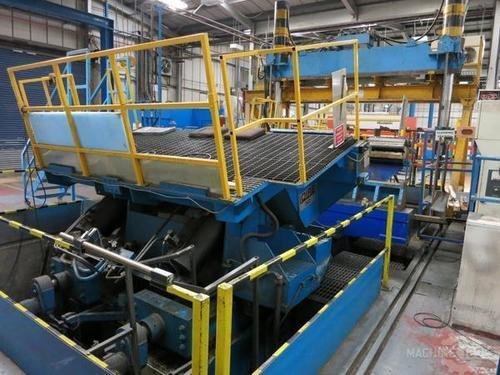

ACB Loire Skin / Leading Edge Stretch Former, Model FEKD 200-400, 400 Ton, 187" x 14", Siemens Sinumerik 840D CNC Control

المواصفات

تحويل المواصفات للمتري
حمولة
400 T
CNC تحكم
CNC (Siemens Sinumerik 840D PLC)

ACB Loire Skin / Leading Edge Stretch Former
Model: FEKD 200-400
Stock #: 20115-IS
Serial No.: 88509
Year: 1985 / 2000

Specifications:
Press table Tonnage: 400 tons metric [ 440 short tons ]
Press table dimensions: 187" long x 14" wide
Press table cylinders: two (2) per carriage at 200 tons
Press table mounter on pivoted center post.
Press table stroke est. 1.2m ( 48” table stroke on table)
Jaw type: Straight, segmented 4m (157” jaw length)
Jaw carriage positioning: Motor driven by 5” diameter lead screw shafts; two (2) per side
Distance range between jaws: 0.0” to 132”
Each jaw carriage with up to 200 tons capacity
Jaw carriages: Function In – Out, rotate jaws up & down on long axis; 20 degrees approx. on horizontal plane
Down acting bulldozer on gantry: 100 tons
Gantry rail mounted, motor (2 per side) driven.
Hydraulic system: Rexroth components
Hydraulic tank capacity: 1100 liters
Hydraulic Power: three (3) 55 Kw motors for press system, separate power/pump system for gantry hydraulic cylinder.
Controls: Siemens Sinumerik 840D PLC (new 2000) by CT Systems, UK
Oil system air fan cooler
