TAKISAWA TT200مخارط CNC

بطاقة الهوية
396599
علامة تجارية
موديل
النوع
السنة
2004
الموقع
Illinois
الولايات المتحدة الامريكية
رقم المخزن
11707

المواصفات

تحويل المواصفات للمتري
حجم الظرف
8 "
أكسات
3
القدرة
15 hp
ماكس RPM
4000 rpm
قطر الخراطة
9.45 "

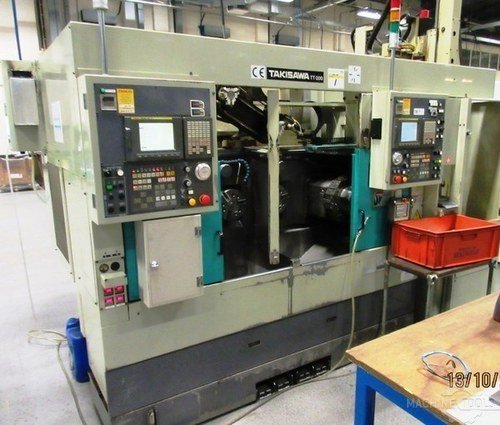

TAKISAWA TT-200-G CNC TWIN SPINDLE TURNING CENTER W/GANTRY LOADER, FANUC 21ITB CNC CONTROLS, C-AXIS, LIVE TOOLING
General Specifications
Distance between spindles 15.20"
Max. Swing 12.60"
Standard Chuck size 2-8" 3-Jaws
opt 10"Cap.
Max. Turning diameter 9.450"
Max. Turning length 5.120"
Turret station 10 Station
X-Axis 6.30" 945 IPM
Z-Axis 7.87" 945 IPM
C-Axis .001"
Live Tooling speed 25-2500 RPM
Spindle speeds 40-4000 RPM
Spindle nose A2-6
Spindle bore 2.40"
Spindle driven motors 2-15 HP
Tool shank size (square) 1"
Tool Shank Size (round) 1.500"
Floor Space 123"x84"x122"H
Machine Weight w/loader (approx.) 12,600 Lbs.
Gantry Specifications:
Target work piece outside dia. 6.30"
Target work piece length 3.94"
Weight lbs 8.8 (x2) or 16 lbs max (1) Part
Travel Running Speed
X-Axis Longitudinal 66.14"
Y-Axis Vertical 27.76"
Z-Axis Cross 8.35"
Hand type 2 Chucks 3-Jaws Stroke @ 32mm 1.26"2 Stock 1 223 SERIAL NUMBER 4 NEW 5
Motor Specifications
Not Available
Equipped With
(2) Fanuc 21iTB CNC Controls
(2) 10 Position Turrets (1) With Live Tooling
Single overhead Gantry Loader
16 Pallet stocker feeder
(2) 8" 3-Jaw Kitagawa Chucks opt 10" Cap.
Chip Conveyor
Coolant Tank and Pumps
Quick change tools setter's Easy for Set up
Misc. Tooling:
Approx. 10 Boring Bar holders
7 Standard holders
3 live Tools Box way design for rigidity

Serial Number
TNRS1127 Year
2004
