RAS GIGABEND 76.30ماكينات تطبيق

بطاقة الهوية
398733
علامة تجارية
موديل
السنة
2006
الموقع
الولايات المتحدة الامريكية
رقم المخزن
6282
Bg 6282
صور ( 3 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على RAS GIGABEND 76.30 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
398733
علامة تجارية
موديل
السنة
2006
الموقع
الولايات المتحدة الامريكية
رقم المخزن
6282

الوصف

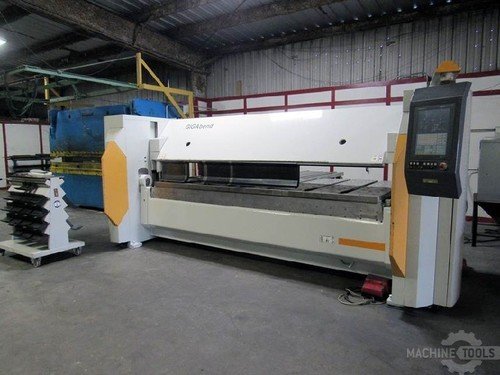

Used RAS 76.30 GIGAbend

المواصفات

تحويل المواصفات للمتري
أقصى سمك
0.25 "
أقصى سمك (المقياس
9 ga
طول كلى
126 "

EQUIPPED WITH

RAS 76.30 GIGAbend Folding System

The GIGAbend rings in another round in the successful RAS product line. Never before in metal folding have two dynamic features been brought together: power and speed. With the GIGAbend folding system, RAS not only reaches the heavier material market, but addresses stainless steel applications up to 9 Ga. as well.

An intelligent crowning system and 130 tons of clamping pressure ensure perfect folded parts on .250". mild steel or 9 Ga. stainless over the full length.

Straight bends are essential for perfectly folded parts. A sturdy and solid machine design is the biggest contributor in producing straight bends. The heavily built folding beam powerfully resists bending forces using a deep and rigid box design. Bending forces vary significantly depending on material thickness, material quality and part length. In addition, the machine deflection near the side frames is less than in the center of the machine.

RAS now offers the patented intelligent crowning system on its line of FLEXIbend folding machines. Integrated sensors measure the actual beam deflection during the first couple of degrees of the folding beam movement. Using this information, the CNC control activates the crowning system, which automatically compensates for beam deflection during the folding beam movement. The CNC writes the adjustment value for each bend into the program so there is no need for additional measuring cycles for the remaining parts.

Without test bends or additional programming, the crowning system creates perfectly straight parts. So, if the material is thick or thin, mild steel or stainless, short or long flanges, or whether the part will be folded in the center of the machine or to one side, the results are straight and accurate parts

* An Additional 161" J shape backgauge section can be added for Approx. $10,000.00

SPECIFICATIONS
Working Length: 125.9"
Maximum Material Thickness (full length): .250" (M.S) (9 Ga S.S.)
Backgauge Depth: .4" ~ 61" (J sect. 161")
Upper Beam Clamping Pressure: 130 Tons
Radius Adjustment: Automatic
CNC Pivot Point Adjustment: 3.14"
CNC Folding Beam Adjustment: 3.14"
Material Thickness Adjustment: Automatic
Upper Beam Upstroke: 19.68"
CNC Control Type: System 6000 Touch Screen
Upper Beam Speed: 2.36" /s
Folding Beam Speed: 80 Deg/s
Backgauge Speed: 1.9 s
Machine Length: 181.9"
Machine Width: 97"
Machine Height: 81"
Working Height: 35.43"
Machine Weight: 22,500
Dual Foot Pedals:
