AXA VHC3-XTS50مراكز التجهيز العمودي

بطاقة الهوية
399702
علامة تجارية
موديل
حالة
تستخدم - تمت إعادة تشكيلها
السنة
2017
الموقع
Bayern
المانيا
رقم المخزن
1514

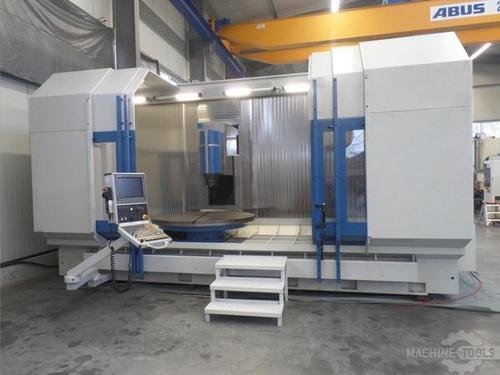

5 achs cnc bearbeitungszentrum axa vhc3xts 50 1 1024
صور ( 5 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على AXA VHC3-XTS50 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
399702
علامة تجارية
موديل
حالة
تستخدم - تمت إعادة تشكيلها
السنة
2017
الموقع
Bayern
المانيا
رقم المخزن
1514

المواصفات

تحويل المواصفات للمتري
X
102.4 "
Y
35.43 "
Z
33.46 "
القدرة
75.1 hp
RPM
9 rpm
# ATC
60
الجدول-W
59.06 "
انحناء
SK 50
أكسات
5
CNC تحكم
CNC (HEIDENHAIN iTNC 530)

NC-Rotary-Table, RTA 5S:
Diametre 1.500 mm
Theoretical loading capacity 10.000 kg
Hydraulical clamping in working position, programmable in steps of 0,001°, measuring system
HEIDENHAIN

Axis-strokes:
Longitudinal (X-axis) 2.600 mm
Cross (Y-axis) milling-head in vertical pos. 900 mm
Cross (Y-axis) milling-head in horizontal pos. 700 mm
Vertical (Z-axis) milling-head in horizontal pos. 850 mm
Vertical (Z-axis) milling-head in vertical pos. 790 mm
Distance table – spindle nose vertical/horizontal 0 – 790/250 – 1.100 mm
Linear scales in all axis, temperature compensation in Y- and z-axis incl. sensors and software

Feed-rate:
X-, Y- and Z-axis stepless 1 – 9.999 mm/min
Max. Force 9.000 N
Rapid feed X/Y/Z 40/40/30 m/min

Main spindle, Headstock:
AC – Mainspindle motor at 40% ED 56 kW
Rpm – range stepless 30 – 9.000 min-1
Torque at 40% ED 357 Nm
Tool taper SK 50 – DIN 69871 A/69872 A
Spindle diam. In front bearing 100 mm
Milling spindle liquid-cooled

1-Axis Milling-Head:
B – Axis +/- 90° swiveling
Hydraulic clamping in working position, programmable in steps of 0,001°, M 19 automatically or
programmable, rigid tapping

Tool-changer – Extended Tool Shop – XTS-Magazine:
Tool change Position vertical
No. of tools 60
Time for tool changing ca. 6 sec.
Chip to chip time ca. 9 sec
Tool diam. (all places used) max. 110 mm
Tool diam. (neighbour-places free) max. 180 mm
Tool-length max. 400 mm
Tool weight max. 15 kg

CNC-Control:
HEIDENHAIN iTNC 530, combiened with digital drives, 15”-TFT screen

Guideways:
Hardened flat guideways with laminated “TURCITE”.

Column, milling-head:
X- and Y-slide, Z-column and milling-head from cast iron.

Coolant unit, chip conveyor:
Coolant through spindle, Coolant tank with 800 l, high-pressure-pump up to max. 40 bar, chip-
conveyor.

Working area:
Fully closed working area (closed on top) with manual doors.

Touch probe:
RENISHAW MP 10 E touch probe, changeable with the tool changer.

Equipment, accessories:
5-axis machining centre with X-, Y-, Z-, B- and C-axis
AXA rotary table RTA 5S – Ø 1.500 mm, 0,001° positionable
CNC-control HEIDENHAIN iTNC 530
Electronical hand wheel
Touch probe RENISHAW
Milling spindle SK 50, 56 kW, 9.000 min-1
1-axis swivelling milling head +/- 90°, 0,001° positionable
Temperature compensation in Y- and Z-axis
Linear scales in X-, Y- and Z-axis
60-fold tool changer XTS
Internal coolant supply max. 40 bar
Chip conveyor
Dust exhausting

Overhauling in 2017 with following scope of services:
Geometry overhauling of X-guideways by company AXA
Geometry overhauling of Y-guideways by company AXA
Geometry overhauling of Z-guideways by company AXA
Renew of ball screws X-axis by company AXA
Renew of ball screws Y-axis by company AXA
Renew of ball screws Z-axis by company AXA
Bearings of milling spindle renewed in 04-2015 by company AXA
New set of gaiter
New painting
