DEFUM KNA 43/53عمودي مملة ميلز (incld VTL)

بطاقة الهوية
400042
علامة تجارية
موديل
السنة
1976
الموقع
Ohio
الولايات المتحدة الامريكية
رقم المخزن
10462

الوصف

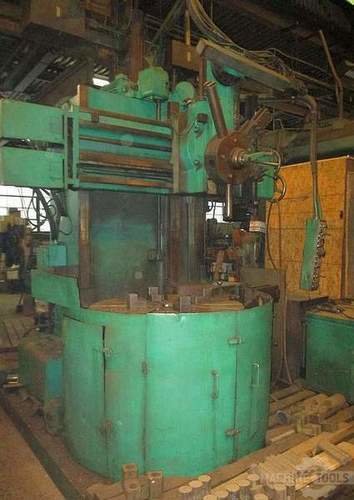

43" DEFUM VERTICAL TURNING & BORING MILL MODEL: KNA 43/53

المواصفات

تحويل المواصفات للمتري
قطر المنضدة
43 "
الأرجحة
53 "
ارتفاع الشغل U/R
39 "
القدرة
30 hp
RPM
200 rpm
الوزن
24000 LBS

ONE (1) USED
43" DEFUM VERTICAL TURNING & BORING MILL

MODEL: KNA 43/53
NEW: 1976

SPECIFICATIONS:

CAPACITY:
TABLE DIAMETER................................ 43"
MAX. FACING DIAMETER (SIDE HEAD LOWERED)...... 53"
MAX. TURNING DIAMETER WITH SIDE HEAD.......... 43"
MAX. WORK HEIGHT, TABLE TO TURRET HEAD FACE... 39"
SLIDE TRAVELS:
VERTICAL TRAVEL OF TURRET RAM................. 23 5/8"
BOTTOM OF CROSS RAIL TO TABLE SURFACE......... 7 1/8" - 39"
VERTICAL TRAVEL OF SIDE HEAD.................. 22"
HORIZONTAL TRAVEL OF SIDE HEAD RAM............ 24"
TURRET HEAD SWIVEL............................ +/- 45 DEG.
DIAMETER OF TURRET HEAD BORES................. 2 3/4"
TABLE SPEEDS:
PENDANT SELECTED TABLE SPEEDS (16)............ 6.3 - 200 RPM MAIN DRIVE TO TABLE........................... 30 HP
FEEDS:
FEEDS TO TURRET AND SIDE HEAD (16)............ 0.008 - 0.393 IPR RAPID TRAVERSE OF HEADS, PENDANT CONTROLLED... 110 IPM APPROX. WEIGHT................................ 24,000 LBS

EQUIPPED WITH:

HARDENED CROSS RAIL WAYS
PENTAGON TURRET HEAD
43" 4-JAW CHUCK
COMPLETE SIDE HEAD WITH FOUR-WAY INDEXING TURRET COOLANT PAN & GUARDING SYSTEM PENDANT CONTROL DIGITAL READOUTS
(2) SET OF 4 CHUCK JAWS
(1) LONG BORING BAR
(1) SHORT BORING BAR
(1) LONG FLANGE BOX TYPE TOOL HOLDER
(1) SHORT FLANGE BOX TYPE TOOL HOLDER


SPECIFICATIONS SUBJECT TO VERIFICATION
