JONES & SHIPMAN 1300-EIUالمطاحن الأسطوانية العالمي

بطاقة الهوية
400148
علامة تجارية
موديل
السنة
1970
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
155828

الوصف

10" Swing 27" Centers Jones & Shipman 1300EIU OD GRINDER, SWING AROUND I.D., HYD. TABLE, AUTO INFEED, PLUNGE

المواصفات

تحويل المواصفات للمتري
الأرجحة
10 "
المراكز
27 "
القدرة
5.5 hp
سرعة عامو دوران رأس الشغلة
320 RPM
قطر عجلة التجليخ
12 "
أقصى وزن بين المراكز
220 lb
غطس (نعم/لا
Yes

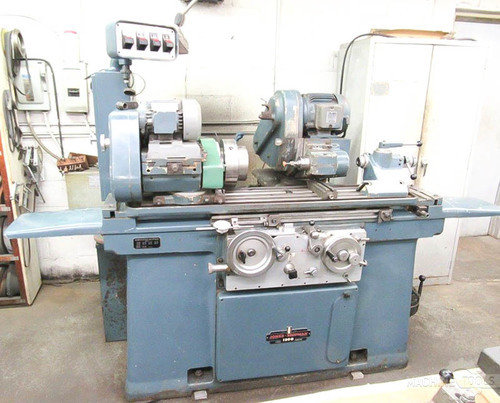

10" X 27" JONES & SHIPMAN (MADE IN ENGLAND)

  "HIGH PRECISION" UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER



MODEL: 1300EIU       S/N: BO-70684       NEW: 1970



MAXIMUM SWING ...................................... 10"

DISTANCE BETWEEN CENTERS ........................... 27"

TABLE SWIVEL ADJ., INCLUDED ANGLE CLOCKWISE ........ 18 DEG.

                                 CCW ............... 16 DEG.

LONGITUDINAL TABLE SPEED (HYDRAULIC) ............... 3" TO 180" IPM

MANUAL TRAVERSE, HANDWHEEL PER REV. ................ 0.50"

FINE HAND TRAVERSE KNOB GRAD. ...................... 0.0005"



  WHEELHEAD:

CROSS FEED HANDWHEEL GRAD. ......................... 0.0002"

ONE DEPRESSION OF FINE FEED LEVER KNOB ............. 0.0001"

AUTO INFEED @ TABLE REVERSALS ...................... 0.0001" TO .0006"

  FEED @ REVERSAL OF TABLE,

  REDUCTION IN DIAMETER ............................ 0.0002" TO .0012"

PLUNGE FEED RATE, INF. VAR. FROM ................... 0.0001" TO .0006"

PLUNGE, REDUCTION IN DIA. FROM ..................... 0.004" TO .160"

PLUNGE FEED RANGE IS ............................... 0.8 REV. OF HANDWHEEL

CROSS TRAVERSE OF WHEELHEAD ........................ 7"

WHEELHEAD, SWIVELS, LEFT & RIGHT ................... 180 DEGREES

WHEEL SIZE ......................................... 12" X 1" X 5"

WHEEL SPEEDS (2) ................................... 1,750 & 2,300 RPM

WHEELHEAD MOTOR .................................... 2 HP



(6) WORKHEAD SPINDLE SPEEDS  ....................... 40 TO 320 RPM

WORKHEAD SPINDLE TAPER ............................. #3MT



APPROX. MACHINE WEIGHT ............................. 4,600 LBS



HYDRAULIC OPERATION FEATURING:

- POWER TABLE TRAVERSE

- AUTO INFEED

- PLUNGE INFEED OPTION



FINE FEED MECHANISM FOR INFEED

FINE FEED KNOB FOR TABLE TRAVERSE

DUAL LIVE/DEAD WORKHEAD SPINDLE





EQUIPPED WITH:

SWING AROUND I.D. GRINDING ATTACHMENT

(1) I.D. GRINDING SPINDLE W/ARBOR & WHEEL

ADAPTOR PLATE WITH TWO MAGNETIC CHUCKS, ONE 9" DIA. & THE OTHER 6.5" DIA.

JONES & SHIPMAN ORIGINAL COOLANT SYSTEM (TANK, PUMP, ETC)

3/60/220-440 VOLT MOTORS





** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

** ORIGINAL PAINT; EXCELLENT CONDITION & APPEARANCE **





FOR MORE INFORMATION: Call Andy at 973-497-7600
