OKUMA & HOWA V60R-Mعمودي مملة ميلز (incld VTL)

بطاقة الهوية
400516
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2005
الموقع
Minnesota
الولايات المتحدة الامريكية
نطاق السعر
$50,001 - $100,000 USD

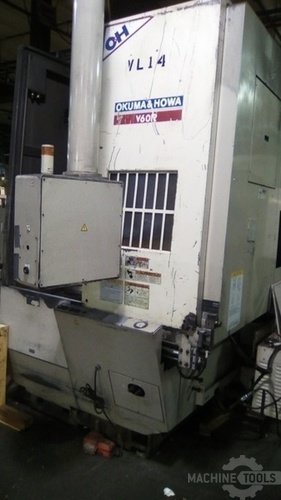

Img 20161117 170218
صور ( 8 )
بطاقة الهوية
400516
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
2005
الموقع
Minnesota
الولايات المتحدة الامريكية
نطاق السعر
$50,001 - $100,000 USD

المواصفات

تحويل المواصفات للمتري
قطر المنضدة
25 "
الأرجحة
27 "
ارتفاع الشغل U/R
25 "
القدرة
40 hp
RPM
2000 rpm
CNC تحكم
CNC (Fanuc 18i-T)

Date of Manufacturing MACHINE INSTALLED 2005
Max Swing 27.6"
Maximum Cutting Diameter 24.00"
Maximum Cutting Length 26.00"
X Axis Travel 14.6"
Z Axis Travel 26.00"
Rapid Traverse Rate 944 IPM X and Z
Spindle Center Height From Floor 42.7"
Spindle Nose A2-11
Spindle Speeds, Infinitely Variable 20 - 2,000 RPM
Spindle Drive Motor 40/30 HP
Turret Type V 12
Number of Driven Tools 6 stations
Driven tools RPM 1-2000 RPM
Collet for Driven tools ER 323
Max Tool size 1.250" (tap M20)
Driven tools HP 5 HP
C axis .001 Deg.
Floor space Required W 80.94" X L 101.96"
Machine Height H 144.09"
Machine Weight (Approximate) 20,900 Lbs.

Equipped With:
Fanuc CNC Control 18 IT
HOWA Hydraulic 3-jaw Chucks 15"
Standard tooling Package
2 live mill heads
High And Low Chucking Pressure (OPTION)
Chip Conveyor Rear Discharge
Coolant tank and pumps
Coolant thru the turret
480V / 38 KVA
All available Manuals
ROBOT INTERFACE
Original door to be put back on machine
This machine was rebuilt on 9/2/2012
WHAT WAS REBUILT ON MACHINE.
Disassemble Machine as necessary for Repair
Cleaned and inspected all parts for wear or damage and advise
Rebuilt spindle complete
Repair and replaced ball screws as needed
replaced all thrust bearings for ball screws
grind column ways flat Parallel and square
Machined back of saddle
Scraped saddle to match column ways
Grind ways on top of saddle flat, Parallel and Square
Machined vertical slide
Scraped vertical slide to Match top of saddle
Machined and scraped all gibs and hold downs
Cleaned out way lube system and replaced metering units as needed
replaced all way wipers
Assembled machine complete.
