HARIG EZ SURF II, NEW 2000, CNC & CONVENTIONAL,المطاحن سطح الترددية

بطاقة الهوية
400616
علامة تجارية
السنة
1998
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
155863

الوصف

12" Width 24" Length Harig EZ SURF II, New 2000, CNC & Conventional, SURFACE GRINDER, PC CNC CONTROL FOR Y/Z, HANDWHEELS, EMC, CLNT

المواصفات

تحويل المواصفات للمتري
الجدول-W
6 "
الجدول-L
18 "
قطر عجلة التجليخ
8 "

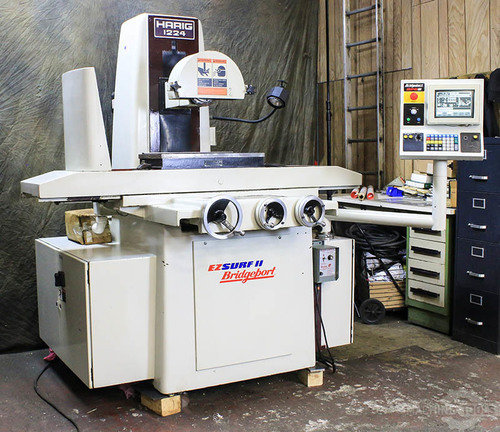

12" X 24" HARIG "E-Z SURF II"  SURFACE GRINDER



MODEL: EZ-SURF II         S/N:   103-24     NEW: 1998







SPECIFICATIONS:

Table Size 12" X 24"

Distance Between Table & Grinding Wheel 14"

X-Axis Table Travel - Hydraulic 28"

X-Axis Table Travel - Handfeed 24"

X-Axis Traverse Rate 36 - 840 IPM

X-Axis Jog Rate 36 - 240 IPM

Y-Axis Vertical Travel - Ball Screw 20"

Y-Axis Feed - Minimum Programmable Increment .0001"

Y-Axis Feed Rate Up to 100 IPM

Y-Axis Jog Mode - Switchable 0.0001,0.001,0.01,0.1 Steps

Z-Axis Table Crossfeed Travel - Ball Screw 14"

Z-Axis Feed Rate Up to 100 IPM

Z-Axis Programmable Increment - Minimum .0001" Resolution

Spark-Out Passes - Maximum 0 - 999

Grinding Wheel - Diameter x Width 12" x 1.5" Grinding Wheel - Bore 3"

Grinding Wheel - 2 Speed 1460 & 1770 RPM

Grinding Wheel - Motor 5 HP Electrics 230-460Volts / 3 Phase / 60Hz













Features:



3-AXIS AUTOMATIC OPERATION

"EZ-SURF" PC BASED PROGRAMMABLE CONTROL

(CROSS & VERTICAL AXES ..... Y/Z AXES)

HYDRAULIC TABLE TRAVERSE

MDI- SETUP-TEACH-PROGRAM & EDIT.

PROFILE GRIND & PROFILE DRESS MODES

  (CREATE YOUR OWN RADIUS& TAPER FORMS FOR GRINDING

AS WELL AS FORMING YOUR WHEEL).

ON-SCREEN GRAPHIC DISPLAY OF WHEEL PATH PRIOR

  TO CUTTING.

CONVERSATIONAL MDI FOR FORM & STEP GRINDING.

SLOT & FORM CREEP FEED GRINDING, SIMULTANEOUS

  TWO-AXIS LINEAR& CIRCULAR INTERPOLATION.

ABSOLUTE & INCREMENTAL OPERATION.

DWELL IN MDI OR END OF STROKE.

JOG.

WHEEL LIBRARY DISPLAY.

RS-232 PORT & DISK DRIVE.

ELECTRONIC HANDWEELS ON Y & Z AXES ...

BALLSCREWS ON Y & Z AXES

MANUAL, SEMI-AUTOMATIC OR FULLY AUTOMATIC

HYDRAULIC TABLE TRAVERSE

CAST IRON CONSTRUCTION INCLUDING BASE







 Accessories:

12" x 24" O.S. WALKER FINE-DIVISION "LBP" ELECTRO-MAGNETIC CHUCK

O.S. WALKER VARIABLE HOLD NEUTROFIER CONTROL

COOLANT SYSTEM











** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **





FOR MORE INFORMATION: Call Andy at 973-497-7600
