BROWN & SHARPE #3المطاحن الأسطوانية العالمي

بطاقة الهوية
401416
علامة تجارية
موديل
السنة
1959
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
155911

الوصف

14" Swing 40" Centers Brown & Sharpe #3 OD GRINDER, HYD TABLE, AUTO INFEED, DUAL WHEELHEAD SLIDE

المواصفات

تحويل المواصفات للمتري
الأرجحة
21 "
المراكز
40 "
القدرة
3 hp
موتور رأس الشغلة
0.2 hp
سرعة عامو دوران رأس الشغلة
50 RPM
قطر عجلة التجليخ
14 "
أقصى وزن بين المراكز
200 lb
غطس (نعم/لا
no

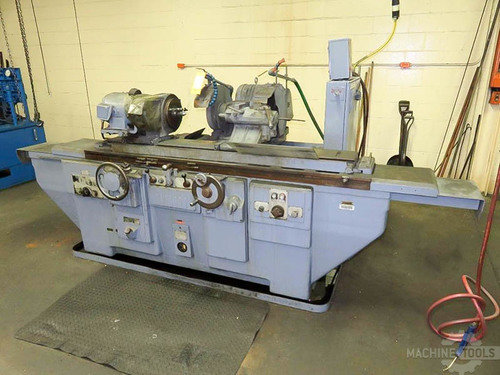

14" X 40" BROWN & SHARPE UNIVERSAL CYLINDRICAL GRINDER





MODEL: #3       S/N:  521-3-48      NEW:  1959



NOMINAL SWING .................................... 14"

DISTANCE BETWEEN CENTERS, NOMINAL ................ 40"

DISTANCE BETWEEN CENTERS, MAXIMUM ................ 43-3/4"



WHEELHEAD MOTOR .................................. 3 HP

WHEELHEAD SPINDLE SPEEDS (3) ..................... 2100, 2400 & 2800 RPM

WHEEL SIZE ....................................... 14" X 1-1/2" X 5"

WHEELHEAD SWIVELS LEFT & RIGHT OF CENTER ......... 90 DEG.

WHEEL SPINDLE SWIVELS ............................ 90 DEG.



HEADSTOCK MOTOR .................................. 1/2 HP

HEADSTOCK SWIVELS ................................ 180 DEG.

INFINITELY VARIABLE SPINDLE SPEEDS ............... 25 TO 500 RPM

SPINDLE NOSE ..................................... A2-6"

B & S TAPER HOLE ................................. No. 12



TAILSTOCK SPINDLE TAPER .......................... No. 10 B & S

TAILSTOCK SPINDLE TRAVEL ......................... 1"



INFINITELY VARIABLE TABLE SPEED .................. 3" TO 150" IPM

TRAVEL PRE-REVOLUTION OF HANDWHEEL ............... 0.1" SLOW

                                                   0.1" FAST

DWELL @ TABLE REVERSAL ........................... 0 TO 2-1/2" SECONDS



SWIVEL TABLE - TAPER PER FOOT .................... 4. 5" BACK

                                                   1" FORWARD

             - SCALES FOR ANGULAR SETTING          1 DEG. BACK

                                                   3 DEG. FORWARD



AUTOMATIC CROSS FEED, INF. VARIABLE .............. 0.0001" - .003"

POSITIVE STOP SETTING ............................ 0.00002"



APPROXIMATE MACHINE WEIGHT ....................... 9,200 LBS

APPROXIMATE DIMENSIONS ........................... 152.75"L X 78.5"D X 61"H



EQUIPPED WITH:



BROWN & SHARPE UNIQUE DESIGN FEATURE:

"DOUBLE SWIVEL WHEELHEAD" - SWIVELLING @ WHEEL SPINDLE HEAD

  OR @ THE WHEEL SLIDE PERMITS ANY COMPOUND SETTING REQUIRED

  IN COMBINATION STRAIGHT AND TAPER GRINDING



 HYDRAULIC OPERATOR FEATURING:

 -POWER TABLE TRAVERSE

 -AUTOMATIC INFEED



 RIGHT OR LEFT END WHEEL MOUNTING

 DUAL DEAD/LIVE HEADSTOCK SPINDLE

 PULL-OUT HYDRAULIC SYSTEM

 COOLANT SYSTEM

 3/60/220-440 VOLT MOTORS



 * INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *

* EXCELLENT CONDITION & APPEARANCE - VERY CLEAN MACHINE TOOL *

FOR MORE INFORMATION: Call Andy at 973-497-7600
