ACCUT ACCUT-VTL-35CNCعمودي مملة ميلز (incld VTL)

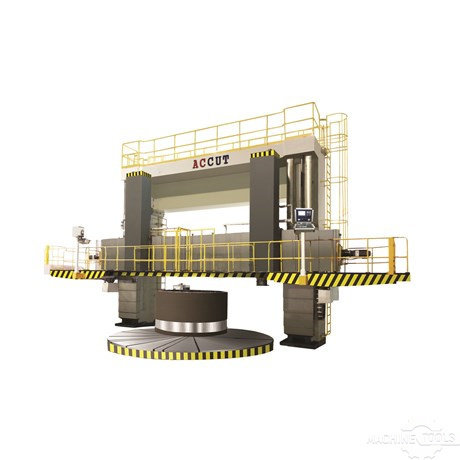

Cnc double column vtl
صور ( 1 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على ACCUT ACCUT-VTL-35CNC ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .


Product Introduction: ■ Such series of products adopt modularization design and the function can be selected arbitrarily. The product design is mature and reliable, thus, large amount of users have selected them. ■ Excellent casting (HT300) is handled by heat aging. ■ The beam guide is handled by supersonic frequency induction hardening and it adopts rolling-sliding compound type. The vertical tool holder utilizes square type ram (QT600-3), which can realize heavy cutting. The sliding surface uses sticking plastic treatment with durable performance. ■ The beam guide, ram guide and vertical column guide adopt automatic lubrication pump for automatic timing and quantitative lubricating. ■ High-quality electrical fittings and famous Japanese OMRON PLC control, high reliability ■ The guide can be divided into such two types as static pressure and purely static pressure. The bearing of dynamic and static pressure is 10 ton; the purely static pressure adopts constant current for oil supply with 16-20 tons of bearing. ■ Independent hydraulic station is possessed, which facilitates adjustment, repair and maintenance. ■JB/T9934.1-1999 precision inspection of CNC vertical lathe is performed JB/T9934.2-1999 technical specification of CNC vertical lathe ■ High-standard processing and assembly process ensure the perfect product quality. ■ High-precision variable speed gear (Grade 6) and high-precision spiral bevel gear (Grade 6 gear grading) are featured with low noise and high rotary precision.


تحويل المواصفات للمتري
قطر المنضدة
111.4 "
137.8 "
ارتفاع الشغل U/R
62.99 "
73.8 hp
50 rpm
CNC تحكم
CNC (Siemens or Fanuc)
