FMS BEB-28بيفلر

بطاقة الهوية
402651
علامة تجارية
FMS
موديل
BEB-28
النوع
حالة
الجديد في المخزن
السنة
2017
الموقع
South Carolina
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
Beb
صور ( 5 )

التنزيلات

FMS BEB-28 (900 KB )

بطاقة الهوية
402651
علامة تجارية
FMS
موديل
BEB-28
النوع
حالة
الجديد في المخزن
السنة
2017
الموقع
South Carolina
الولايات المتحدة الامريكية
عودة السياسة
30 يوم

الوصف

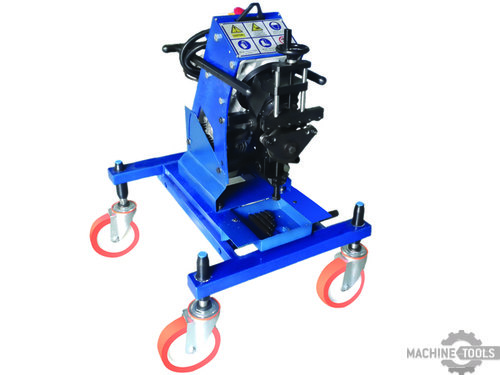

The BEB Portable Plate Edge Beveling Machines are electrically powered rotary shear. It is used to bevel a wide variety of plate edges, usually for the purpose of a weld joint preparation. • It is designed for one-man operation and is capable of bevelling straight or circular plate sections at a speed of approximately 4 m per minute. ıt is capable of performing multi-pass bevelling for larger bevels that cannot be accomplished in a single pass. Easy adjustment is provided for altering the depth and angle of bevel. • The BEB Portable Plate Edge Beveling Machines are capable of supporting its own weight while beveling horizontal plate. The machine is typically equipped with the optional spring loaded caster assembly that allows the machine to roll along the floor or runway, during the beveling operation. • The adjustable beveling head enables the beveling of angles 22.5° through 55°. It provides a highly efficient, practical and truly portable method of producing straight machined bevels on a variety of plate materials, including mild steel, stainless steel and aluminum effectively meeting V, X, or K weld joint preparation requirements. • Loss of production through operators suffering from skeletal, muscular and hearing loss injuries normally associated with pneumatic and handheld milling type beveling equipment is greatly reduced and detrimental factors such as operator fatigue, or inconsistent workmanship are eliminated. Required quality levels are consistently attained and productivity and profitability increased.

المواصفات

تحويل المواصفات للمتري
درجة ميل البيفل
22.5°
ماكس شطبة
55 "
أقصى سمك
2 "
موتور
3 hp
الأبعاد
38" L x 57" H x 34" W
الوزن
979

Speed: 10 fpm
Min. Plate Thickness: .314"
Max. Cutting width: 1.102"
Max. Cutting depth: 24.2
