MATTISON 24-42, NEW 1980, 75 H.P. SPINDLE, WITH AUTO CYCLEالمطاحن سطح الدوارة

بطاقة الهوية
404793
علامة تجارية
السنة
1980
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
156107

الوصف

42" Chuck 75HP Spindle Mattison 24-42, NEW 1980, 75 H.P. SPINDLE, WITH AUTO CYCLE ROTARY SURFACE GRINDER, WIRED FOR A MARPOSS GAUGE, DRY BASE & COOLANT

المواصفات

تحويل المواصفات للمتري
قطر الظرف
42 "
عامود الدوران (أفقى/رأسى
Vert
القدرة
50 hp
الأرجحة
56 "
أسفل العجلة
24 "
قطر عجلة التجليخ
22 "

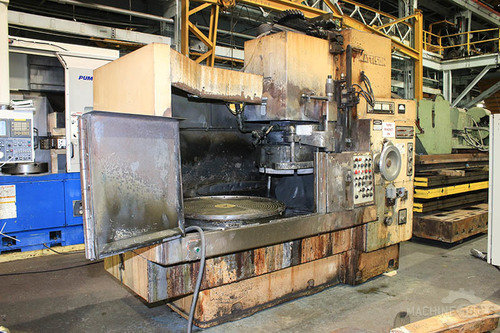

42" MATTISON Model No. 24 Rotary Surface Grinder

(This Machine was Made in the USA)



** Automatic Cycle that can be Used with a

    Marposs In-Process Gauging System **



Serial No.: 24-704      Age: 1980



CATALOG SPECIFICATIONS:

Magnetic Chuck Diameter ............................. 42"

Swing Inside Coolant Guards ......................... 48"

Vertical Capacity ................................... 24"

Chuck Rotation Variable Speed ....................... 6-28 RPM

Grinding Wheel Size ................................. 24"

Grinding Wheel Speed ................................ 705 RPM

Feed Rate, Variable ................................. 0.005-.165" IPM

Spindle Motor ....................................... 75 HP

Electrical Requirements ............................. 480/3/60

Approx. Dims. Of Machine Tool Only .................. 133" X 65" x 116"H

Approx. Dims. Of the Electrical Cabinet ............. 82" x 23"W x 90"H

Approx. Dims. Of the Coolant System ................. 41" x 67"W x 72"H

Approx. Dims. Of Hydraulic Unit ..................... 36" x 36" x 55"H

Approx. Machine Weight .............................. 22,000 LBS



EQUIPPED WITH:

42" Magnetic Chuck, with 5/8" Chuck Life

24" Segmented Grinding Wheel

75 HP Spindle Motor Option

 Quick Tilt Spindle

Dresser





ADDITIONAL MACHINE FEATURES:

Automatic Cycle that can be Used with a Marposs In-Process Gauging System

Automatic Continuous Downfeed

Automatic Coarse & Fine  Feeds

Power Rapid Traverse

Spark-out Timer

Load Meter

Hand Wheel For Manual Downfeed

Central Lube System

External Hydraulic Unit

Chuck Ring

Skid of Spare Parts

Coolant System, "Cyclonic" Type with Conveyor, 141" x 67"W x 72"H

Machine is Presently Wired for 3/60/480 Volts/Full Load Amps 110



** Under Power in our Harrison, NJ Warehouse **

** Excellent Condition & Appearance **





FOR MORE INFORMATION: Call Andy at 973-497-7600
