TACCHELLA 1018-UAالمطاحن الأسطوانية بما في ذلك الرأس وسهل زاوية

بطاقة الهوية
405820
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1976
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
1974

الوصف

14" x 40" Tacchella M-1018-UA Universal Grinder, Auto Infeed, Plunge, Rapid, Sparkout, Newall 2 Axis DRO, 2HP Work Head Motor, New 1976. http://www.agreenco.com/TacchellaM1018UA-1974.html

المواصفات

تحويل المواصفات للمتري
الأرجحة
14.1 "
المراكز
40 "
قطر عجلة التجليخ
14 "
دوران العجلة RPM
1900 rpm
غطس (نعم/لا
Yes
قياس (نعم/لا
No
دريسر (نعم/لا
Yes
الأبعاد
120" x 60" x 69"H
الوزن
8,000 lb.

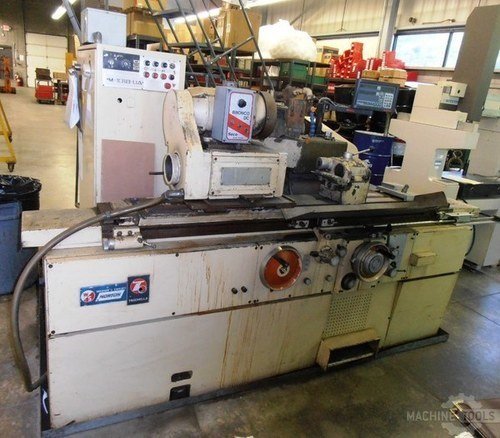

1-(used) 14" x 40" Tacchella Model 1018UA Universal Cylindrical Grinder, new 1976.

SPECIFICATIONS:
Maximum swing over table................................................ 14"
Distance between centers................................................ 40"
Table traverse rate............................................ 4 TO 192 ipm
Grinding wheel size................................ 14" dia. x 2"w x 5" hole
Wheelhead swivel range.......................................... +/- 90 deg.
Grinding wheel spindle speeds (2)............................. 1640/1900 rpm
Automatic infeed @ table reversal (on dia.)................ 0.0005" TO .002"
Plunge grinding, feed rate range........................... 0.0005" TO .070"
Rapid hydraulic infeed:.................................................. 2"
Workhead speeds (infinitely variable)......................... 30 TO 600 rpm
Workhead taper........................................................ #4 MT
Workhead spindle hole,.............................................. 1-3/16"
Workhead swivel range........................................... +/- 90 deg.
Tailstock taper....................................................... #4 MT
Tailstock stroke..................................................... 1-1/4"
Swivel table graduated (deg. included angle)......................... 9 deg.
Electrics................................................ 3/60/230/460 volts
Dimensions (approx.)...................................... 120" x 60" x 69"H
Weight (approx.).................................................. 8,000 lb.

EQUIPPED WITH:
Hydraulic operation featuring:
Single lever auto cycle control
Auto table traverse
Auto infeed
Dual rate (coarse & fine) plunge infeed
Rapid wheelhead advance & retraction
Sparkout timer (0 to 60 seconds)
Dual live/dead headstock spindle
14" grinding wheel
Electronic speed control for workhead
Tailstock with dresser
Auto lubrication system
Coolant system
Wired presently 460 volts

http://www.agreenco.com/TacchellaM1018UA-1974.html
