ERIE DOWN ACTING 4 POSTمكابس هيدروليكية

بطاقة الهوية
405894
علامة تجارية
موديل
DOWN ACTING 4 POST
السنة
1973
الموقع
الولايات المتحدة الامريكية
رقم المخزن
7147

الوصف

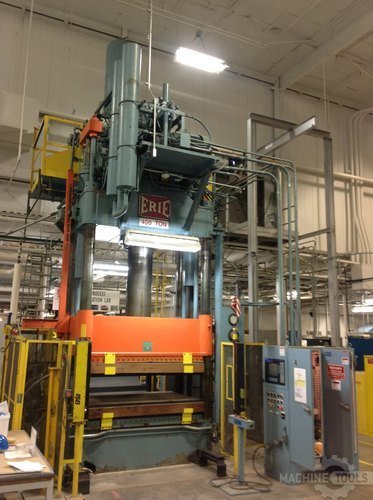

PRELIMINARY SPECIFICATIONS ERIE 4 POST HYDRAULIC PRESS UPDATED ELECTRICS AND MOHAWK HYDRAULIC UNIT  PLATENS CAN BE HEATED OR CHILLED FLOOR STANDING 400 TON CAPACITY 48" X 72" BOLSTER WITH HEATED/CHILLED PLATEN 48" X 72" RAM WITH HEATED/CHILLED PLATEN 60" STROKE 66" DAYLIGHT OPENING 73-1/2" L-R OPENING FRONT & BACK POST 34" F-B OPENING BETWEEN POST 39" FLOOR TO TOP OF PLATEN PRESS SPEEDS 600 in/min FAST ADVANCE 120 in/min INTERMEDIATE ADVANCE 20 in/min PRESSING 95 in/min SLOW RETURN 600 in/min FAST RETURN EQUIPPED WITH UPDATED MOHAWK HYDRAULIC UNIT UPDATED OILGEAR SERVO CONTROL ELECTRICS ALLEN BRADLEY PLC-5 PANEL VIEW CONTROL PALM CONTROLS EMERGENCY RETURN /INCH UP/AUTO MODE ISB IV LIGHT CURTAINS - FRONT & BACK -  SAFETY BARS ON SIDE 40 HP, 1200 RPM MAIN MOTOR   APPROX O.A. DIMENSIONS APPROX. FLOOR SPACE  140" LR X 110" FB X 260" H ESTIMATED WEIGHT 66,000 LBS AVAILABLE FOR INSPECTION, AVAILABLE IMMEDIATELY! PRESS WELL MAINTAINED IN CLEAN TEST FACILITY, LIGHT USAGE!!! Specifications Subject To Verification; Subject To Prior Sale and Price Change We encourage your personal inspection of this machine, available immediately! CLICK ON VIDEO LINK BELOW
