HARDINGE HLV-Hمخارط الدقة

بطاقة الهوية
407611
علامة تجارية
موديل
رقم المسلسل
7269 S
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
5725
الثمن
Bg 5725
صور ( 6 )
بطاقة الهوية
407611
علامة تجارية
موديل
رقم المسلسل
7269 S
الموقع
California
الولايات المتحدة الامريكية
رقم المخزن
5725
الثمن

الوصف

Tool Post, Tailstock, and Coolant System. USA Made.

المواصفات

تحويل المواصفات للمتري
الأرجحة
11 "
المراكز
18 "
القلوظة
yes
انحناء
2
القدرة
0.5 hp
RPM
3000 rpm
الأبعاد
72" x 31" x 73"
الوزن
2250 lbs.

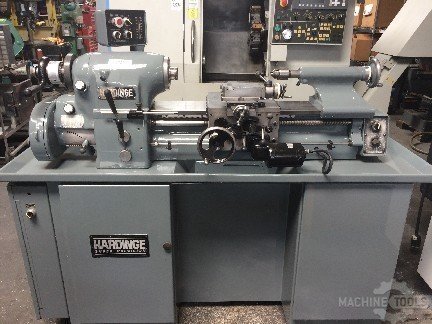

Hardinge HLV-H Tool Room Lathe 1980's Tool Post Tailstock Coolant System.

Stock No. 5725
Serial #: 7269 S
Location: Fullerton, CA.

Swing Over Bed 11"
Swing Over Carriage 9"
Swing Over Cross Slide 6"
Dist. Btwn Centers 18"
Compound Slide Travel 3"
Carriage Power Feed Range 5/16 - 7 IPM
Cross Slide Power Feed Range 3/16 - 4 IPM
Coolant Sump Capacity 3 Gal.
Spindle Capacity
With Round 5C Collets 1-1/16"
With Hexagon 5C Collets 7/8"
With Square 5C Collets 3/4"
With Step Chucks 6"
With Jaw Chucks 5"
With Expanding Collets 3"
Spindle Configuration 5C Hardinge
Hole Thru Spindle 1-1/4"
Infinitely Variable Spindle Speeds 100 - 3,000 RPM
Base Speed 1750 RPM
Power 5 HP
Torque 15 ft-lb.
Thread Range 4.0 - 250.0 TPI
Right-Left Hand Threads
4.0 - 10.0 TPI 250 RPM
10.1 - 24.0 TPI 1000 RPM
24.1 - 80.0 TPI 1500 RPM
80.1 - 250.0 TPI 2000 RPM
Multiple Start Threads Up To 4
Lead Screw Pitch 8 Pitch
Morse Taper Center MT No.2
Tailstock Spindle Diameter 1-3/8"
Tailstock Spindle Travel 3-3/4"
Approx. Dimensions 71.5" x 31" x 73"
Approx. Weight 2,250 lbs.

Equipped With:
Tool Post, Tailstock, and Coolant System. USA Made.

Price ……………………… $16,500.00

PLEASE SEE TERMS AND CONDITIONS BELOW
TERMS AND CONDITIONS OF SALES
Unless otherwise arranged, 10% cash (non-refundable) with order, balance prior to shipment of machine. Title does not pass until machine has been paid for in full. There are no warranties by ACT Machinery as to compliance with any requirements of Federal, State and Local laws and industrial codes, including, without limitation, the Occupational Safety and Health Act of 1970 and all amendments thereto. It is the buyer’s duty to inspect all machinery, to provide proper safety devices and equipment or means that may be necessary to safeguard the operator from harm and to safeguard each machine and equipment to meet all government standards, including the Occupational Safety and Health Act of 1970. Specifications are approximate, not binding and meant as a guide only. We reserve the right to correct typographical errors. It is the purchaser’s responsibility to verify specifications and dimensions. All machines offered subject to prior sale and for acceptance within ten days from date of quotation. Prices subject to change without notice. Orders are not subject to cancellation except by written mutual consent. All equipment sold “AS IS” with no guarantees expressed or implied. It is further understood and agreed this buyer or subsequent buyers will hold vendor harmless for causes of action whatsoever. This agreement constitutes the entire contract of sale of the goods named herein. No modification of this contract shall be binding upon Seller unless in writing and signed by an authorized officer of Seller.
