BULLARD 42عمودي مملة ميلز (incld VTL)

بطاقة الهوية
407697
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1942
الموقع
Texas
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
رقم المخزن
Ref.#B600629
Bs 42 1
صور ( 4 )
بطاقة الهوية
407697
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1942
الموقع
Texas
الولايات المتحدة الامريكية
عودة السياسة
30 يوم
رقم المخزن
Ref.#B600629

الوصف

42" Used Bullard Spiral Drive Vertical Turret Lathe Ref.#B600629 Model: 42 Serial No. New: 1942 Table Size.....42" 4-Jaw Swing Side Head Above Table.....45" Swing Side Head Below Table.....46" Height Under Rail.....36" Cross Rail Travel.....25" Table Speed.....10 To 93 Rpm's Feeds......005 To .500 Turret Head Travel Left To Right......30-3/8" Turret Head Swivel.....30 Degrees Turret Ram Head Turret Travel Up & Down.....27" Turret Head Position.....5 Side Head Travel In & Out.....21" Side Head Travel Up & Down......25" Main Motor.....25 Hp. Weight 19,000 Lbs. Machine Floor Space.....85" X 117" Machine Height.....104" Power Elevation Of Rail.....Yes Rapid Traverse To Both Head.....Yes Built In 4 Way Tool Post On Side Head.....Yes Note: Machine Will Be Cleaned & Cycled. Condition Good Note: Turret & Side Head Gear Boxes Have Been Reconditioned. Spindle & Transmission Have Been Pulled and Check. Oil Has Been Drained And Tanks Has Been Cleaned. Side Has Been Removed And Check And Cleaned. New Electric Motors And Gear Boxes For Turret Rapid Travel Left To Right And Up And Down. New Electric Motor For Rail Elevation And Gear Box Complete With Electrics. Machine Has Been Cleaned, Painted And Cycled. Price: Please Call Or Email

المواصفات

تحويل المواصفات للمتري
قطر المنضدة
42 "
الأرجحة
46 "
ارتفاع الشغل U/R
36 "
القدرة
25 hp
RPM
93 rpm
الأبعاد
85"X 117"
الوزن
19,000 Lbs.

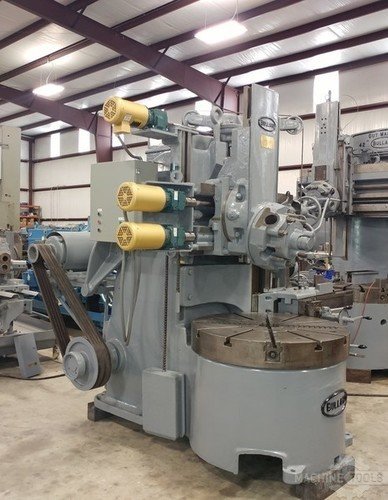

42" Used Bullard Spiral Drive Vertical Turret Lathe Ref.#B600629
Model: 42
Serial No.
New: 1942

Table Size.....42" 4-Jaw
Swing Side Head Above Table.....45"
Swing Side Head Below Table.....46"
Height Under Rail.....36"
Cross Rail Travel.....25"
Table Speed.....10 To 93 Rpm's
Feeds......005 To .500
Turret Head Travel Left To Right......30-3/8"
Turret Head Swivel.....30 Degrees
Turret Ram Head Turret Travel Up & Down.....27"
Turret Head Position.....5
Side Head Travel In & Out.....21"
Side Head Travel Up & Down......25"
Main Motor.....25 Hp.
Weight 19,000 Lbs.
Machine Floor Space.....85" X 117"
Machine Height.....104"
Power Elevation Of Rail.....Yes
Rapid Traverse To Both Head.....Yes
Built In 4 Way Tool Post On Side Head.....Yes

Note: Machine Will Be Cleaned & Cycled.

Condition Good
Note: Turret & Side Head Gear Boxes Have Been Reconditioned. Spindle & Transmission Have Been Pulled and Check. Oil Has Been Drained And Tanks Has Been Cleaned. Side Has Been Removed And Check And Cleaned. New Electric Motors And Gear Boxes For Turret Rapid Travel Left To Right And Up And Down. New Electric Motor For Rail Elevation And Gear Box Complete With Electrics. Machine Has Been Cleaned, Painted And Cycled.

Price: Please Call Or Email
